Bar pads

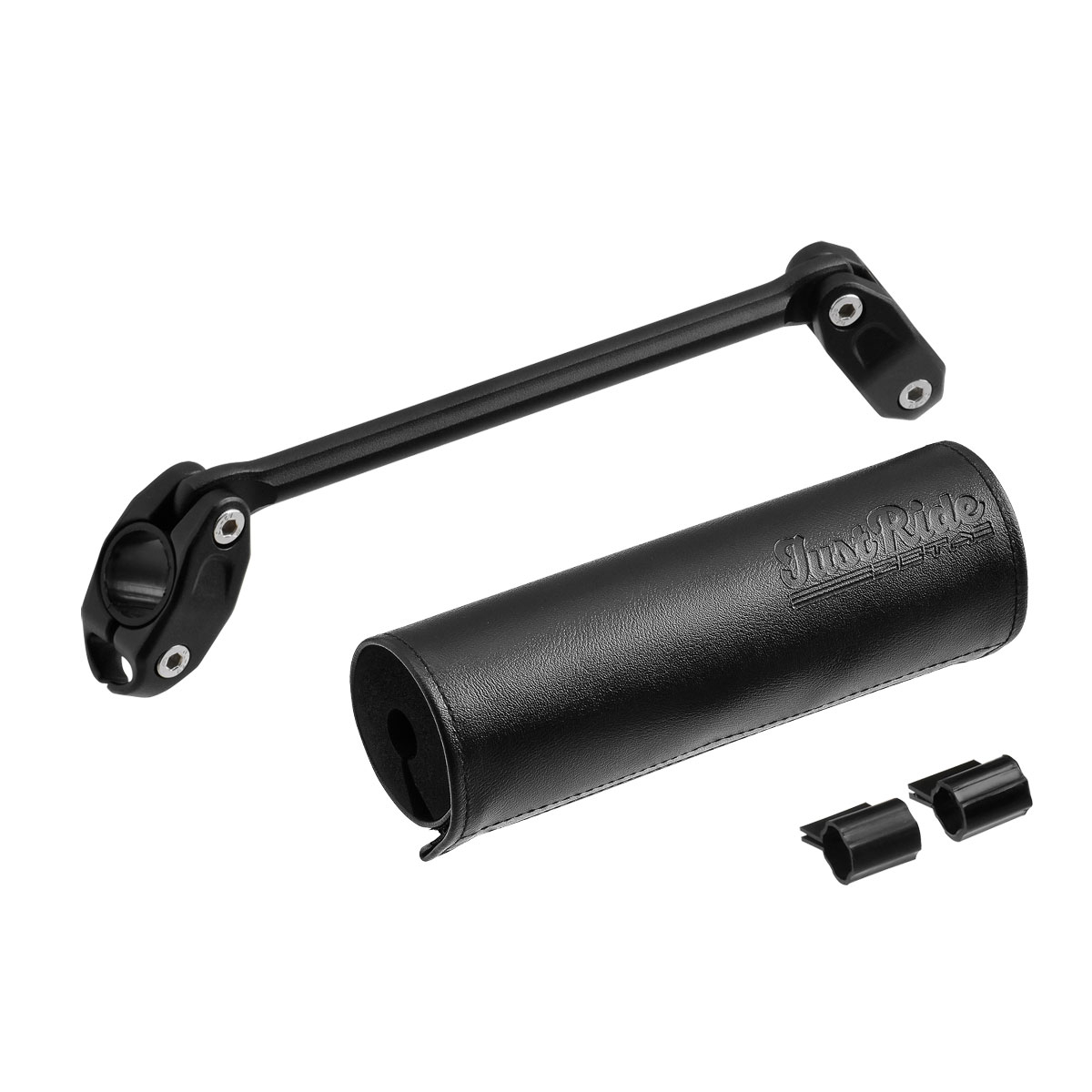

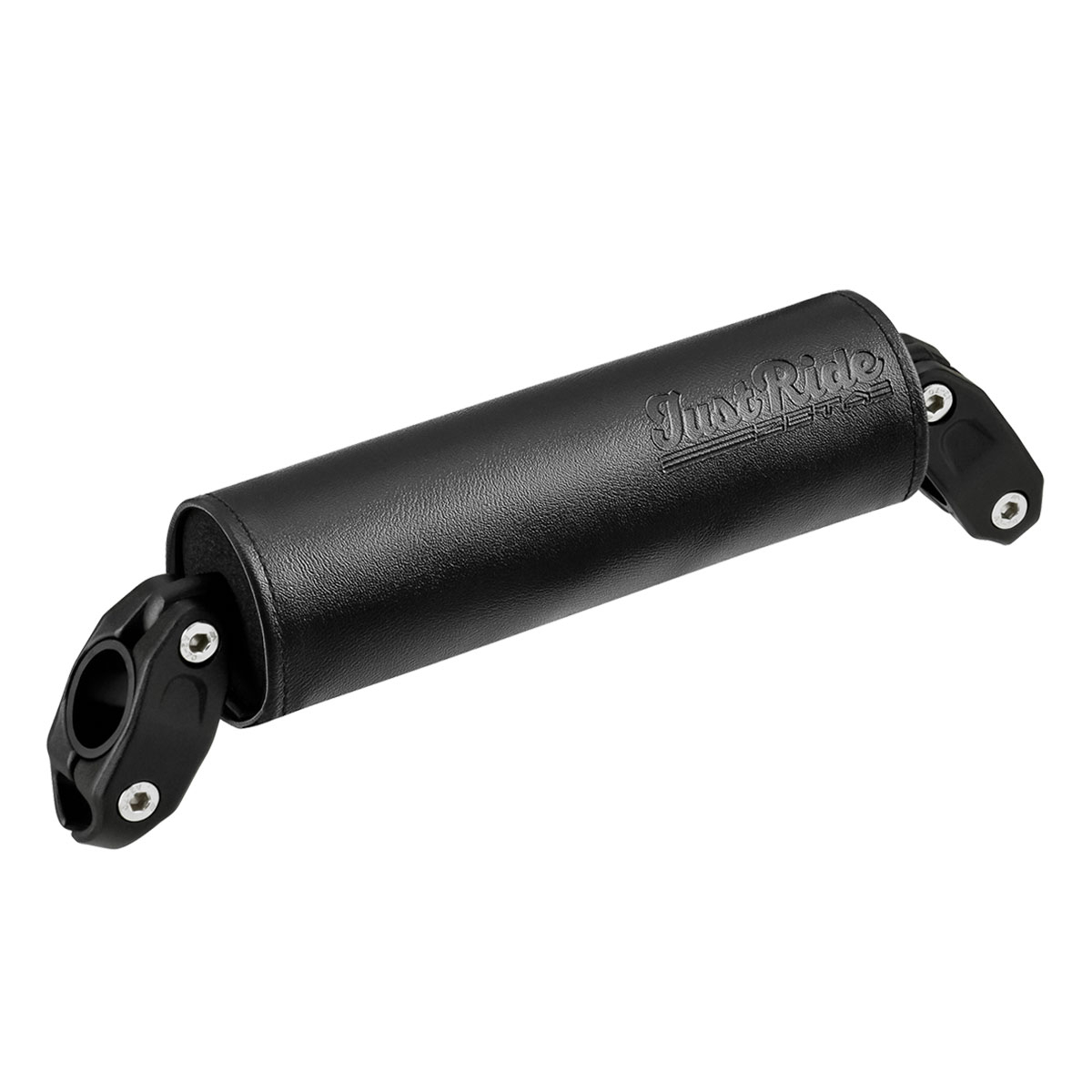

ZETA Scrambler Bar Pad 165mm BLACK & Handle Brace 185mm Set

New part number
G5580
Old part number
ZE47-9610

Create scrambler style

Color

Black

Size

Bar Pad: 165Mm / Brace Length: 185Mm

View other product series

Inquire about our products

Product Description

The bar pad set combines a synthetic leather bar pad that significantly changes the image of the handlebar area and a handlebar brace that increases the rigidity of the handlebars.

You can enjoy coordinating it with your vehicle as well as with your wear.

Product Image

  • Size: Bar pad: 200mm/Brace length: 220mm
  • Weight: Approx. 256g
  • Contents:
    • 1 bar pad
    • 1 handle brace
    • 2 bar pad stoppers
  • Adaptation:
    • Brace compatible handlebar diameter: diameter 22.2mm
    • Compatible brace diameter for single bar pads: diameter 12mm to 14mm
  • material :
    • Bar pad cover: PVC
    • Form: PA
    • Handle brace clamp: Forged aluminum alloy
    • Brace shaft: Aluminum alloy
  • Surface treatment: Brace: Sandblasting treatment Anodized finish
Vehicle type Year Brace length
HONDA
CL250 23-24 220mm
CL500 23-24 220mm
GB350S 21-24 220mm
CT125 (JA55) 20-22 220mm
CT125 (JA65) 23-25 220mm

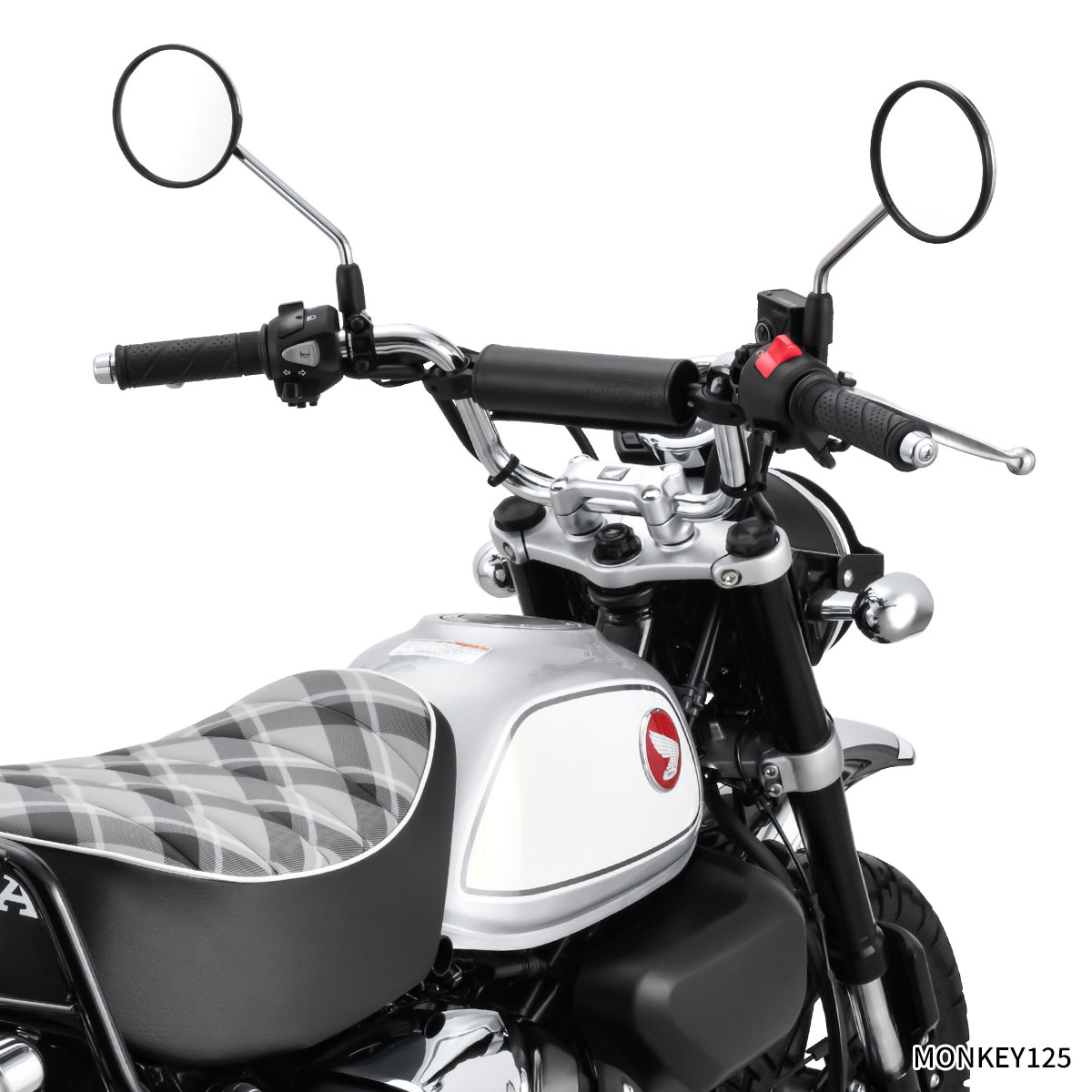

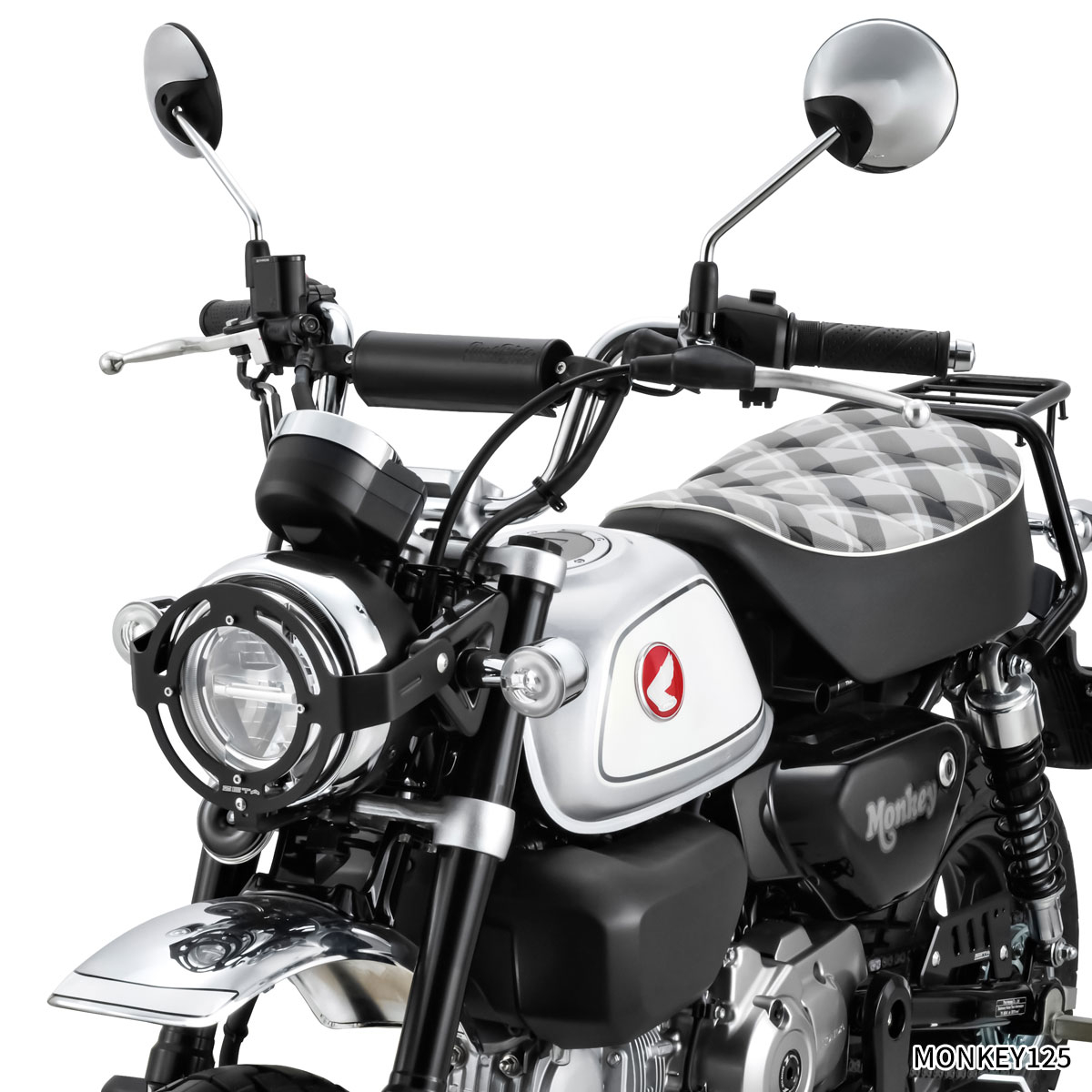

MONKEY125 (JB02) 19-21 185mm
MONKEY125 (JB03) 22-23 185mm
MONKEY125 (JB05) 24 185mm
DAX125 23-25 185mm
YAMAHA
XSR125 24 220mm
SUZUKI
V-STORM250SX 23-25 220mm
Maker Car model Model year New Product Number {{ item.main_item_specification_1_content_en }} {{ item.main_item_specification_2_content_en }} {{ item.main_item_specification_3_content_en }} {{ header.has_en ? header.title_en : header.title }}
Loading data...
{{ row && row.maker_name ? row.maker_name : '' }} {{ row && row.maker_car_base_name ? row.maker_car_base_name : '' }} {{ row && row.maker_car_base_year ? row.maker_car_base_year : '' }} 【NEW】 {{ row && row.product_code ? row.product_code : '' }} ※{{ row.product_code_note }} {{ row && row.specification_1 ? row.specification_1 : '' }} {{ row && row.specification_2 ? row.specification_2 : '' }} {{ row && row.specification_3 ? row.specification_3 : '' }} {{ custom.has_en ? custom.name_en : custom.name }}
No data available

Annotation

Image New number {{ item.specification_1_content_en }} {{ item.specification_2_content_en }} {{ item.specification_3_content_en }}
Loading data...
{{ series_item.master.product_code }} {{ series_item.specification_1_attribute_name_en }} {{ series_item.specification_2_attribute_name_en }} {{ series_item.specification_3_attribute_name_en }}
No data

Precautions

  • The performance of the bar pad as armor may not work due to the shape of the vehicle and the way it is tipped.
  • Bar pads cannot be used for braces with a diameter of 22.2 mm.
