Seat kit

Advance Seat

New part number
D5361
Old part number
ZE66-4010

Complete seats that are both comfortable and sporty

Type

Standard Seat

View other product series

Inquire about our products

D5361

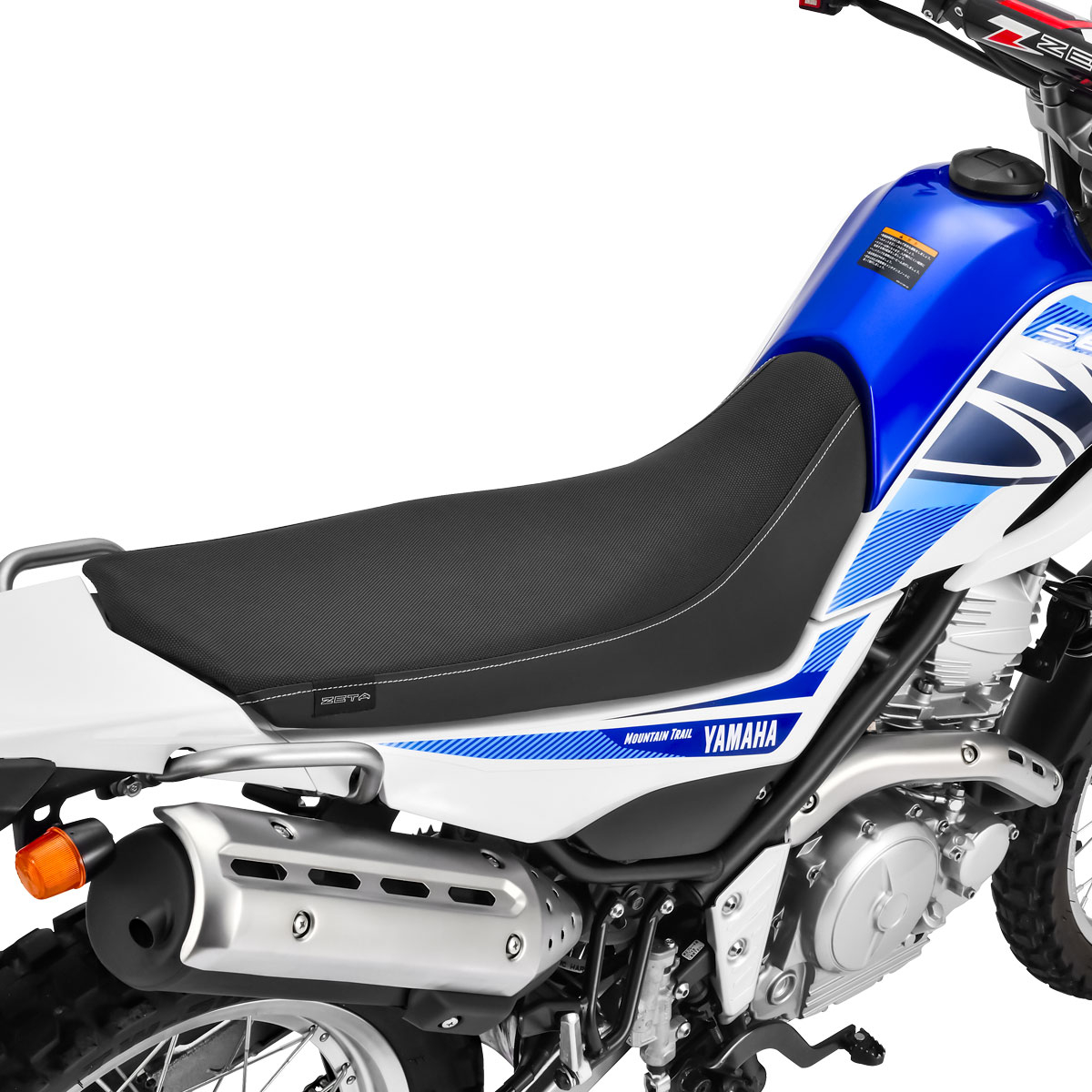

Standard seat installed

Product Description

A complete seat with an original shape that makes touring more comfortable.

Three types of settings (standard, high, and low) allow riders to easily change their preferred position according to their body shape and intended use.

The seat shape is designed for a variety of situations, such as sitting for long hours on long tours, standing off-road, winding mountain roads, and waiting at traffic lights for everyday use.

It is excellent not only for touring but also for sports performance, and meets a wide range of needs such as off-road driving and trekking.
    raw materials
    • Seat cover: PVC
    • Sponge: High-density urethane foam
    • Sheet base: PP

    Contents
    • Seat assembly x 1 pc
    • Double-sided adhesive tape with sponge x 1 pc

Product Image

  • Seat Shape Pursuing Riding Comfort and Sports Performance (1)
    The seat is made wider in the middle of the seating position to take the load of the rider with a wide "surface". This distributes the surface pressure and prevents buttock pain even during long tours. The shape of the seat does not interfere with the rider's body movements when standing or sport riding, allowing the rider to maintain an appropriate riding position.

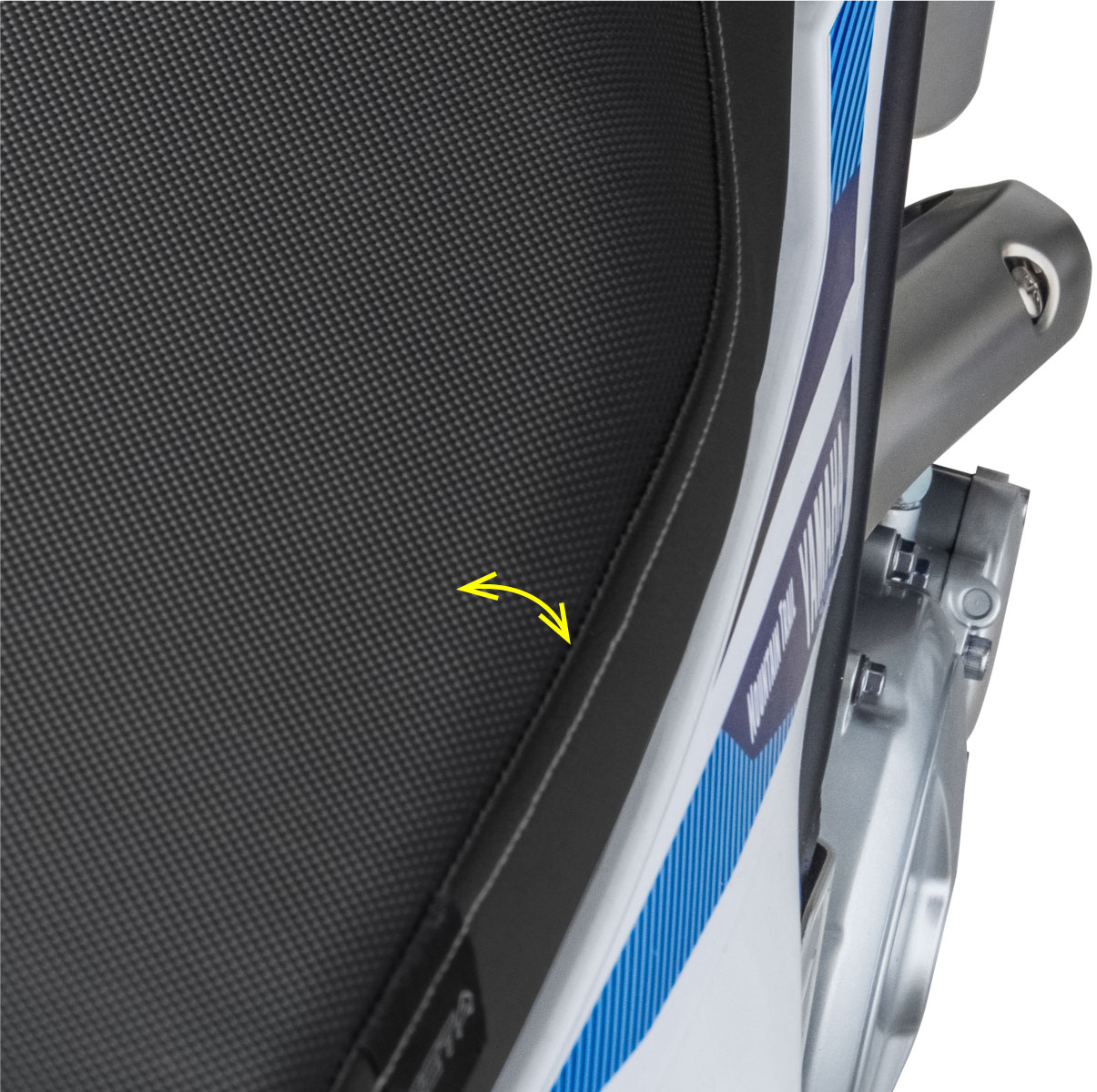

  • Seat shape that pursues riding comfort and sports performance②
    Rounded corners of the seat eliminate corner contact when seated, reducing fatigue. The rounded corners also make it easier to shift weight when sitting on the corners of the seat, a form unique to off-road riding.

  • Seat Shape Pursuing Riding Comfort and Sports Performance3
    The seat is designed to be flat toward the front of the rider. This prevents the rider from sliding forward when decelerating or riding downhill, making it easy to maintain an optimal position at all times and reducing fatigue. During sport riding, it is easier for the rider to shift weight and control posture,

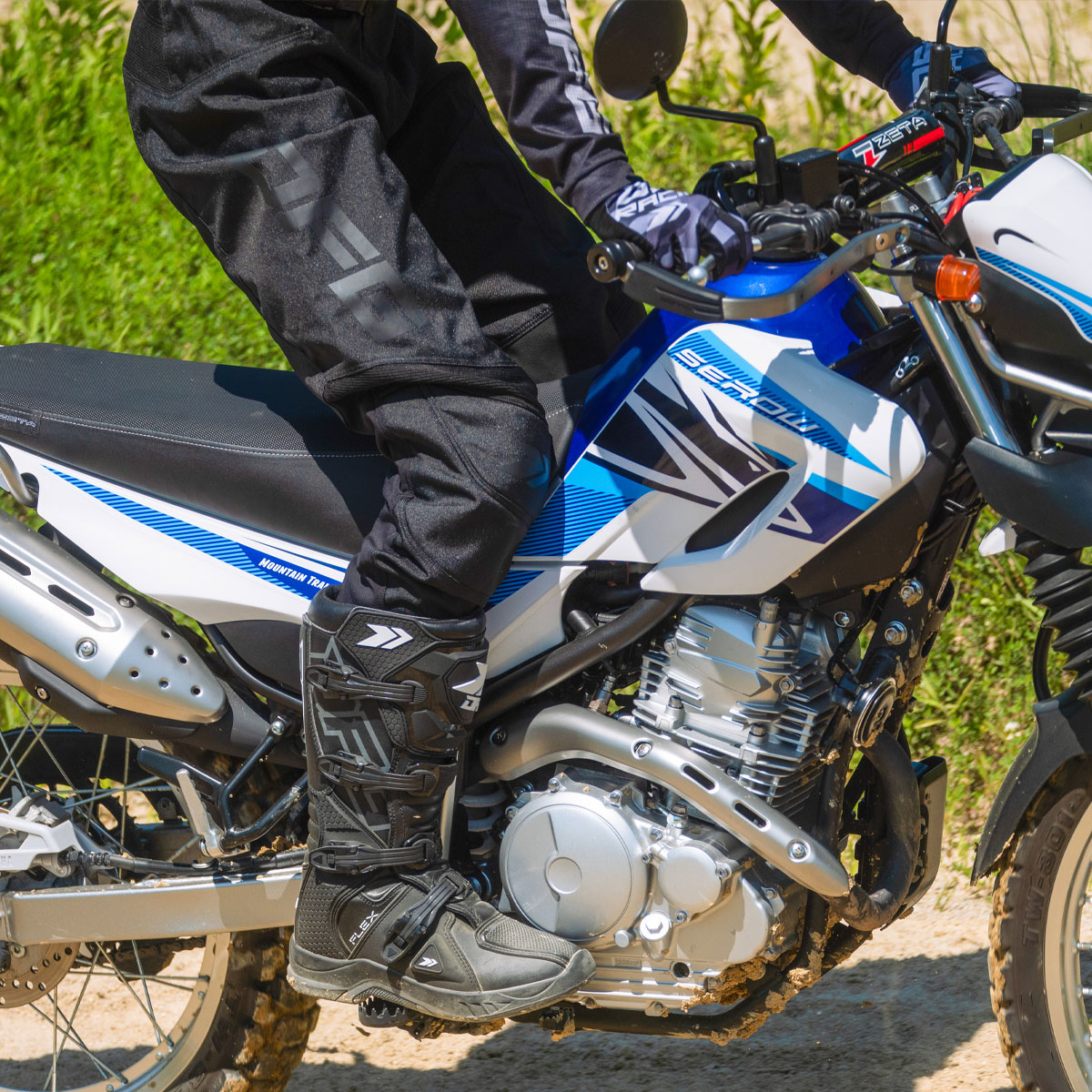

  • Improved footing

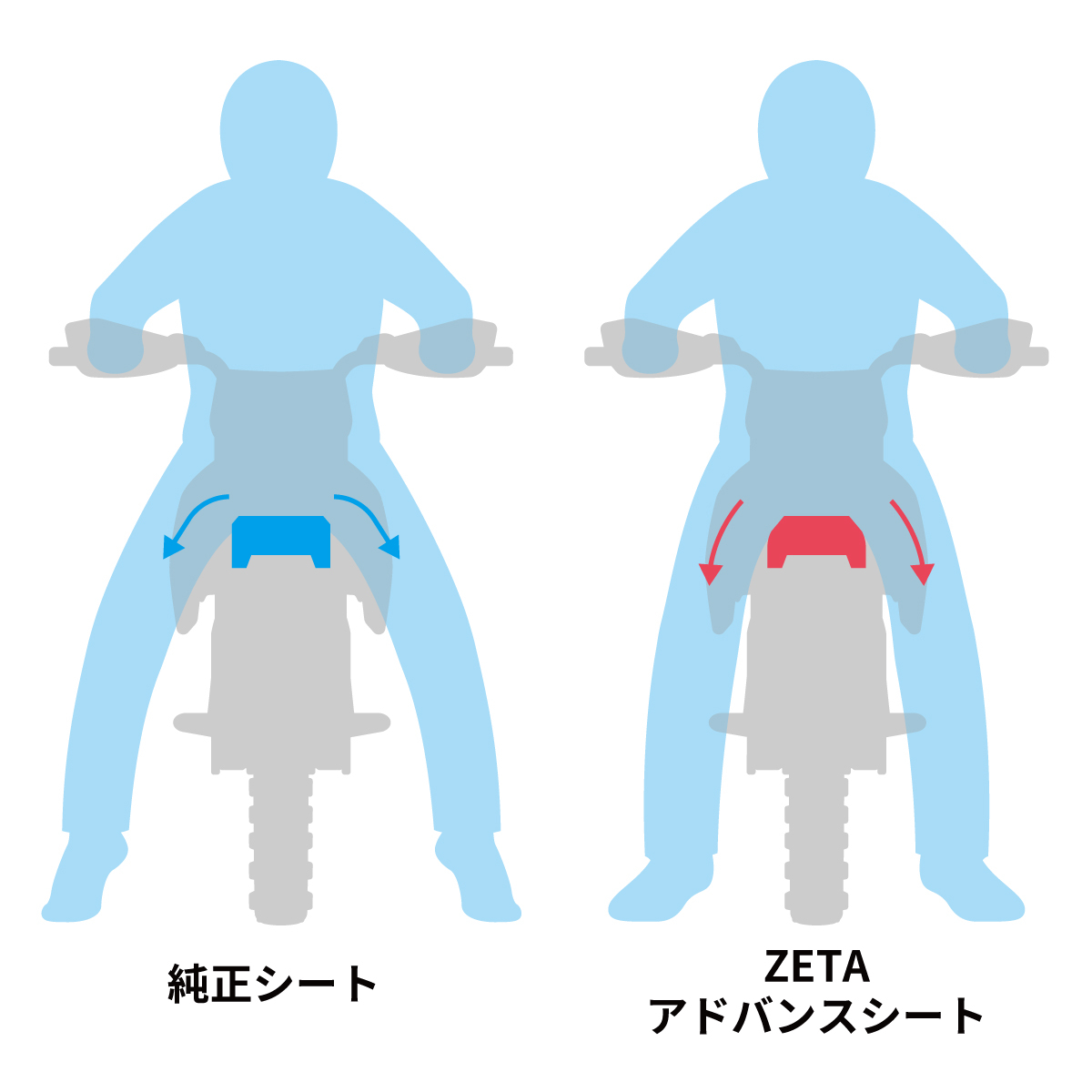

    The corner in front of the seat has been lowered to improve footing. The thighs are less likely to hit the seat, and the legs can be lowered straight down.

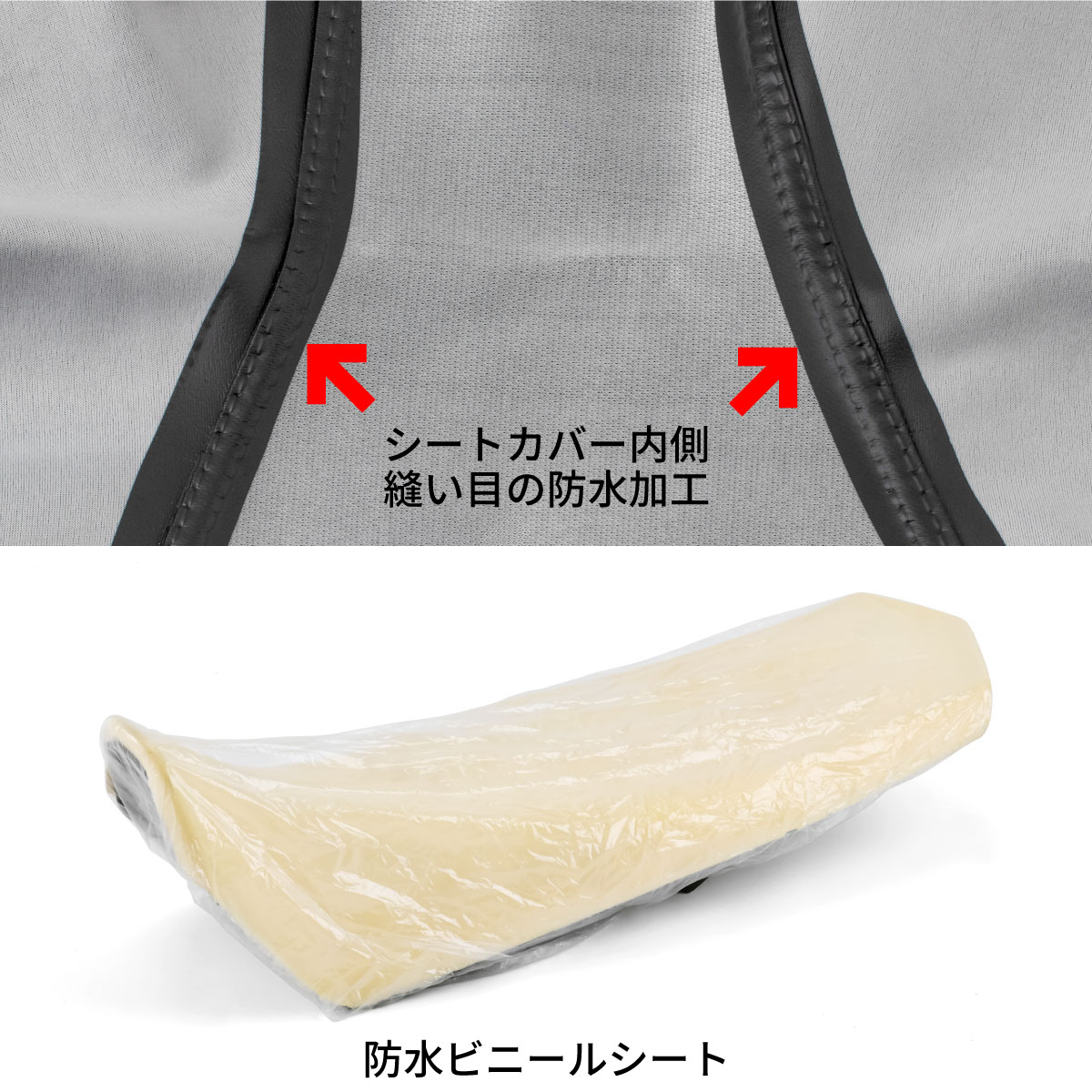

  • High waterproof performance
    The seams of the seat cover are waterproofed to prevent water from penetrating the urethane foam even when the seat is wet. In addition, by covering the urethane foam with a waterproof vinyl sheet, the urethane foam itself is less likely to absorb water and prevent deterioration even when water does penetrate.

    * Although this product is waterproofed, it is not completely waterproof. If water gets on the seat when driving in the rain or washing the car, water may get into the sewn parts.

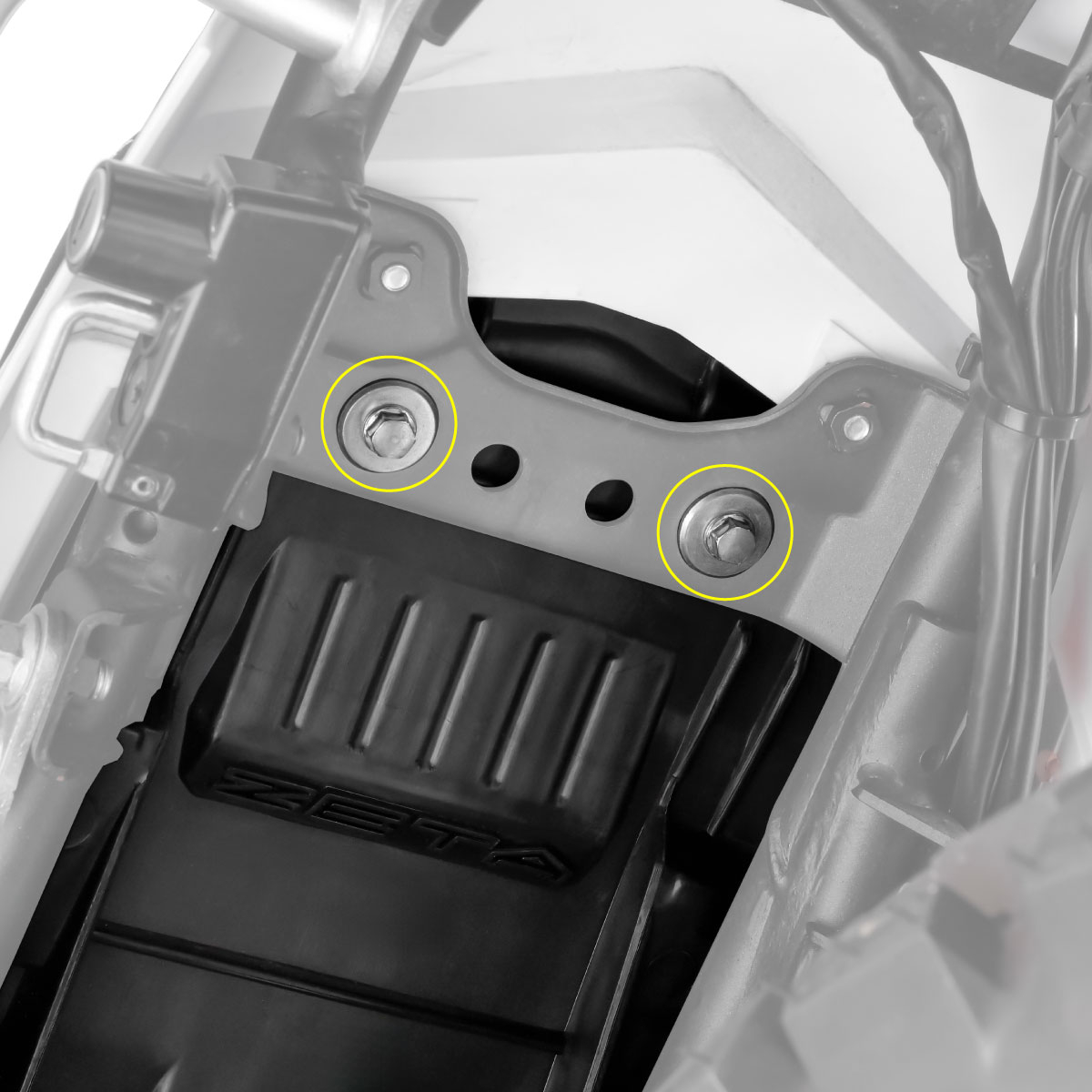

  • Easy bolt-on installation
    The seat cover is upholstered in an assembly specification, eliminating the need to replace the seat. Easy detachment with two M6 bolts on the back of the rear fender.

  • The key to reducing fatigue

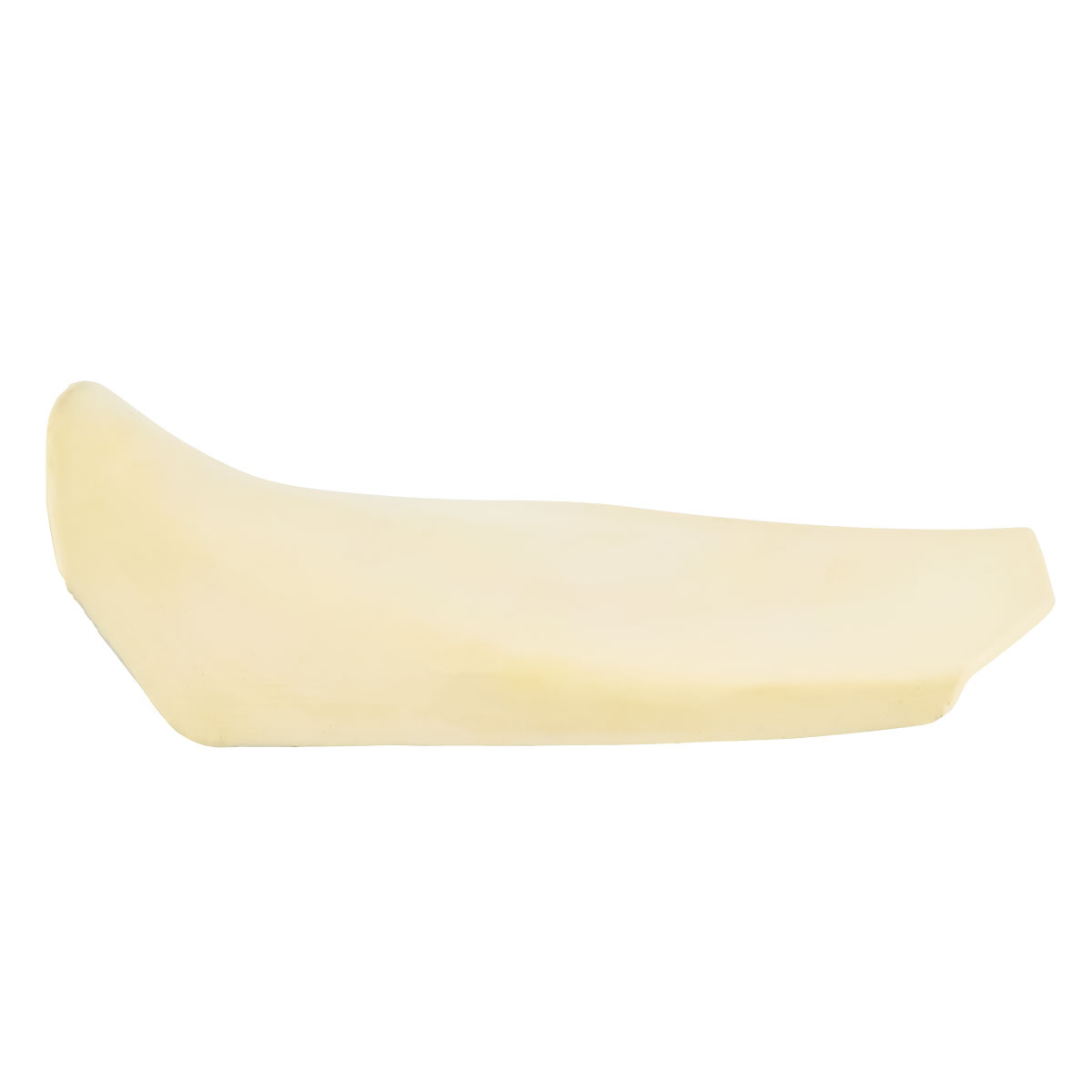

    High-density injection foam urethane foam is used. The highly resilient material prevents excessive sponge sinkage, stabilizing the torso and making it easier to maintain the riding position.

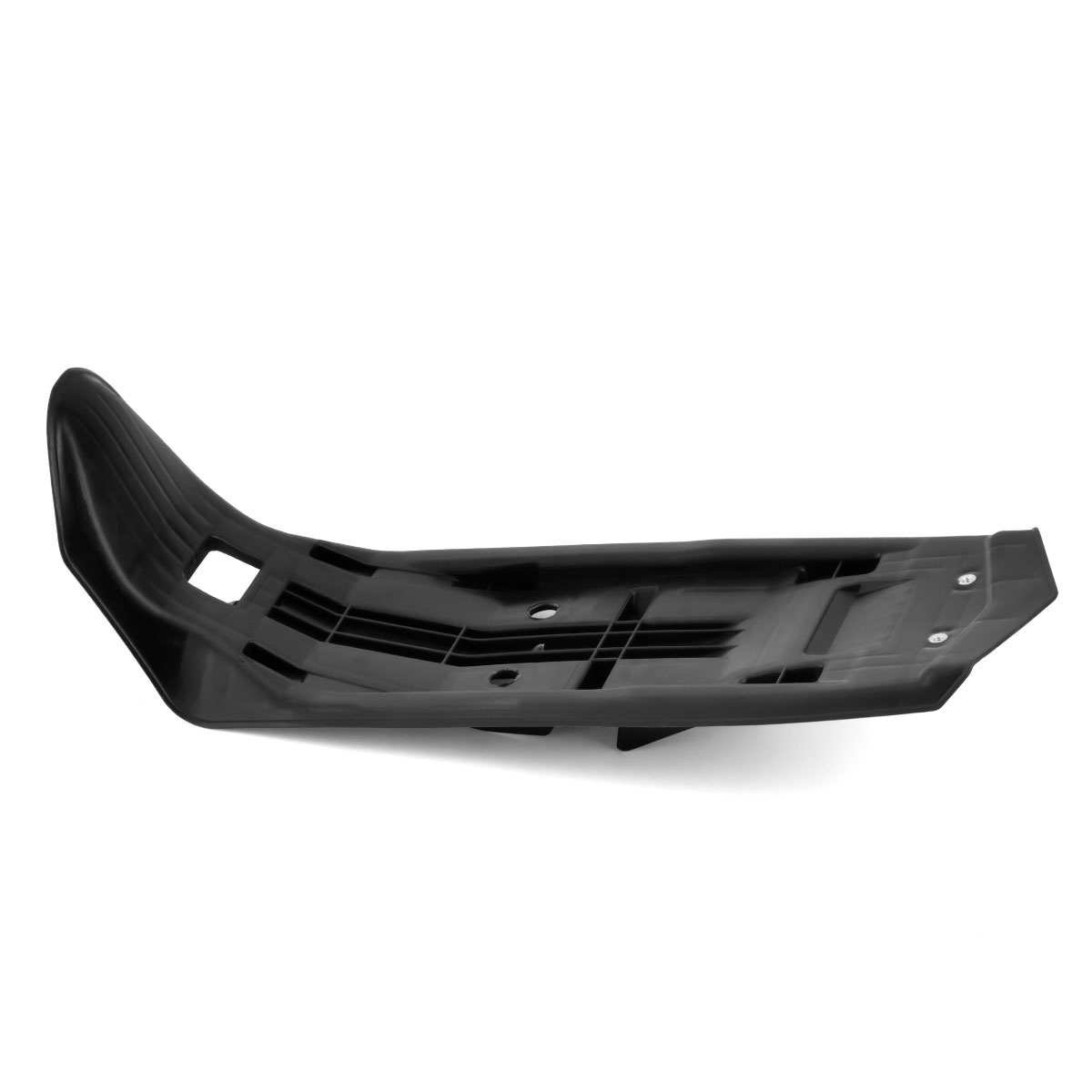

  • Damage-resistant seat base
    The seat base is made of polypropylene (PP), a material also used in genuine parts. It is lightweight, flexible, sturdy, and impact resistant.

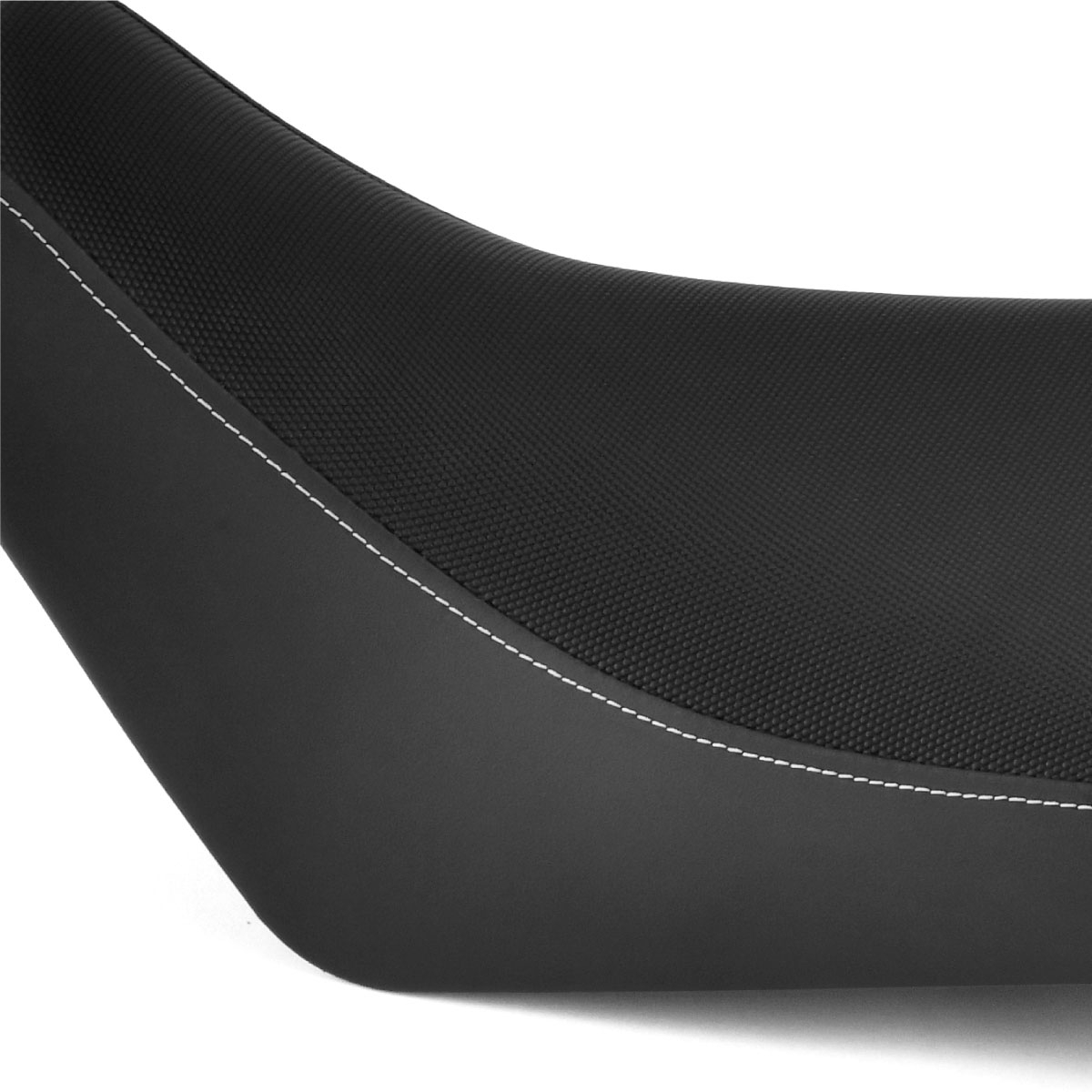

  • High Grip Benefits
    The seat cover is made of high quality PVC leather that provides excellent grip and durability. It supports knee grip and requires no extra effort, reducing fatigue when driving. Excellent machine controllability due to less slippage and posture changes.

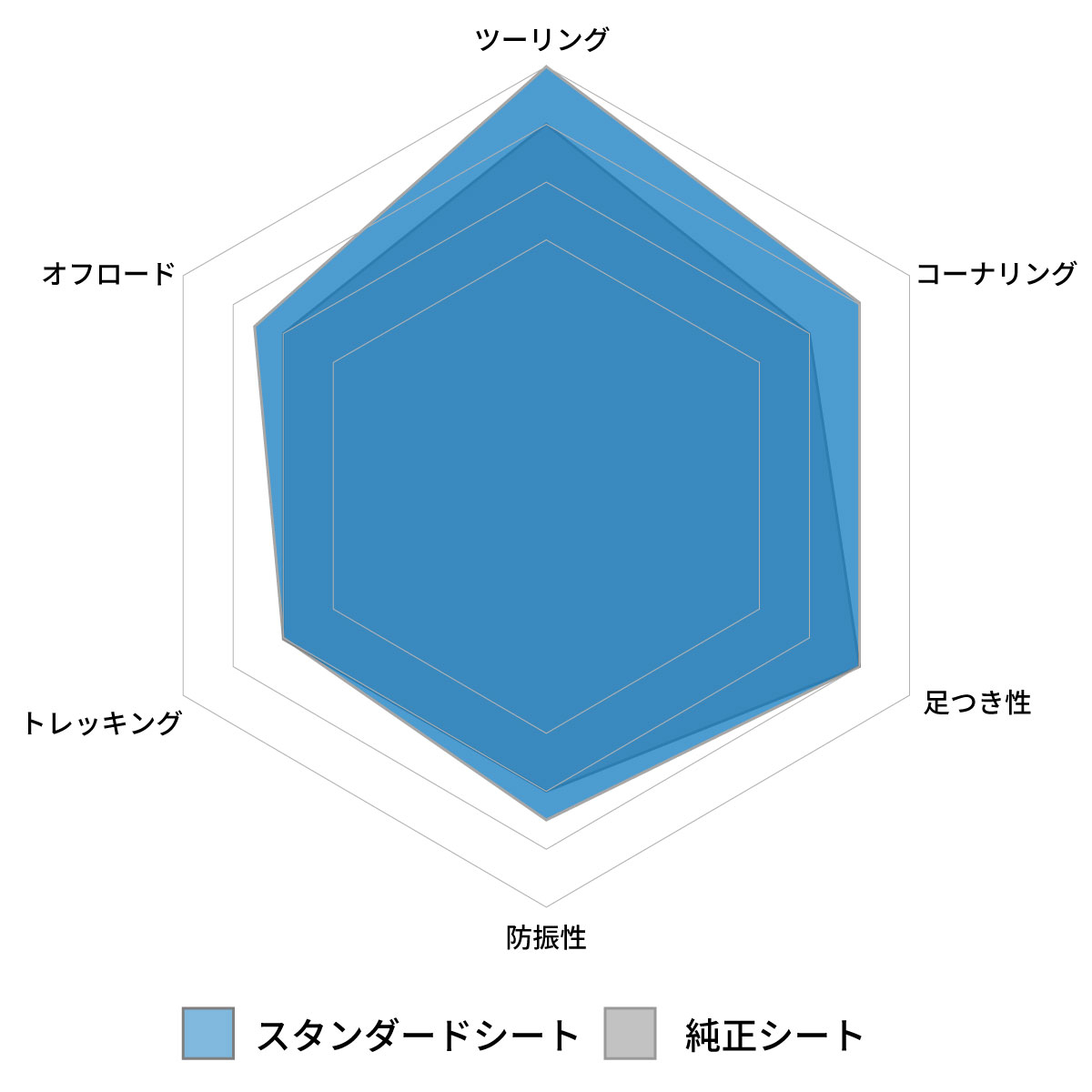

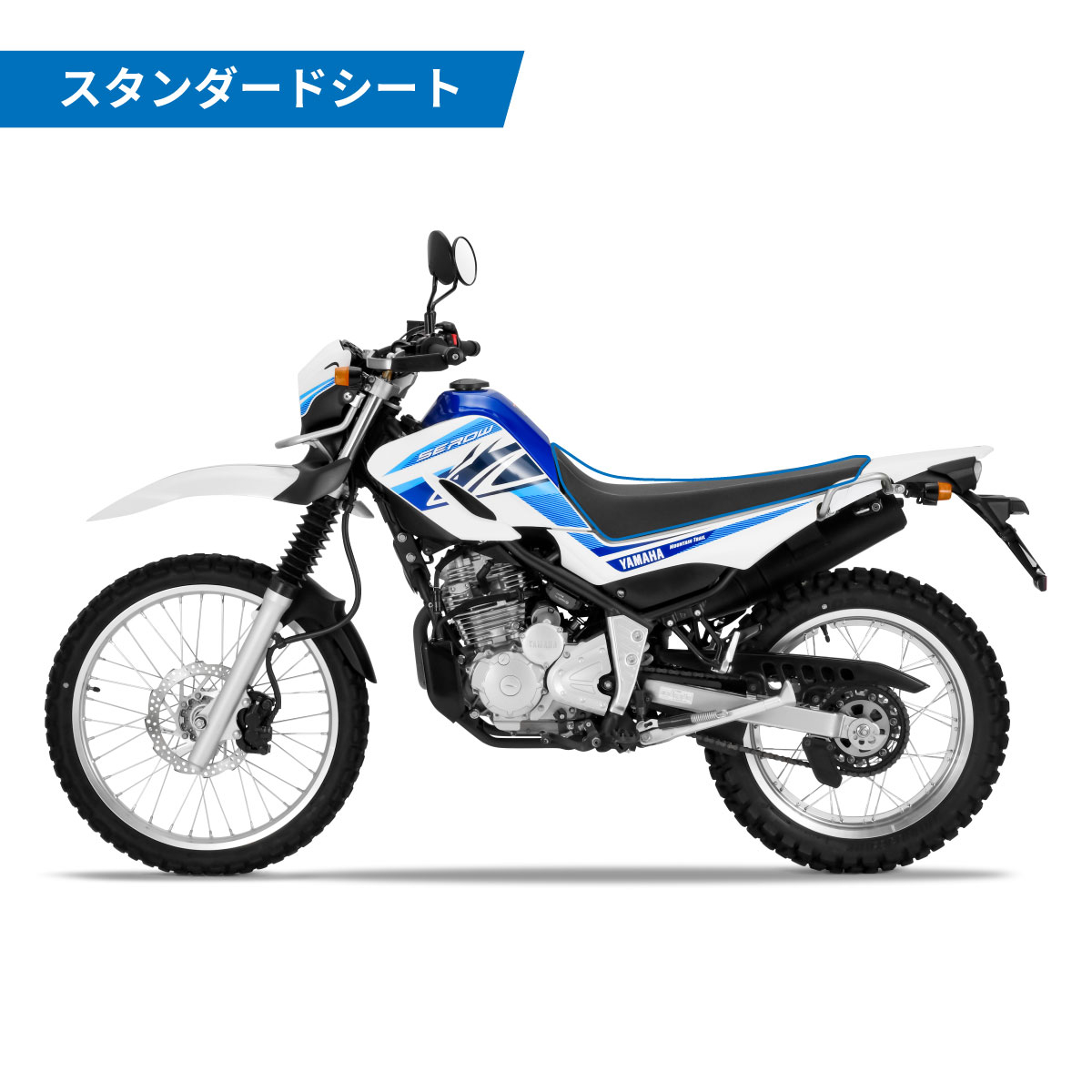

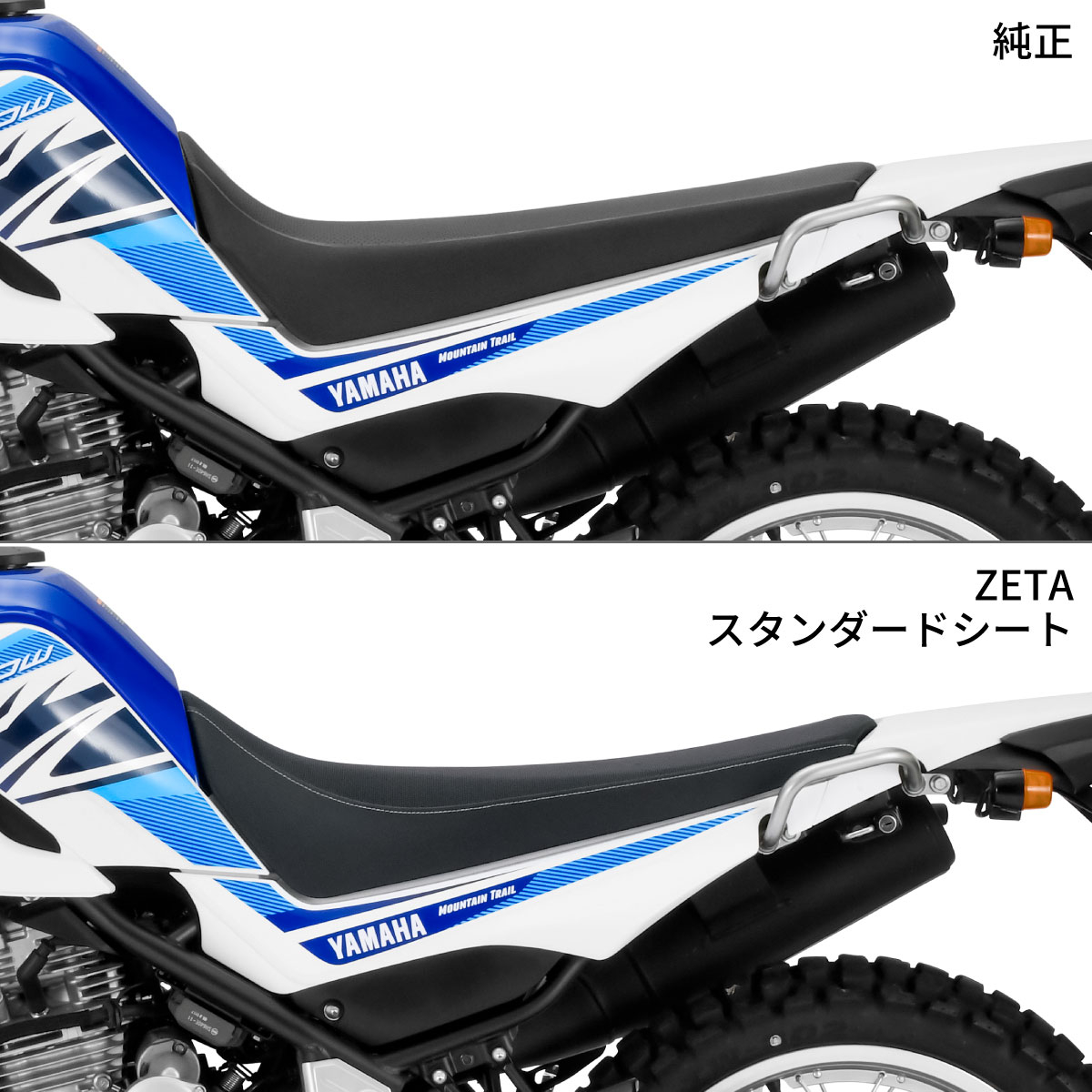

[Standard seat] Model height: 170cm
A seat that pursues comfort for long-distance touring. While ensuring the same level of foot fit as the original seats, it has succeeded in increasing the thickness of the urethane by approximately 15mm. The enveloping feeling you can feel right after starting your ride provides comfortable support for long periods of riding.
Urethane hardness (OEM comparison) → Soft

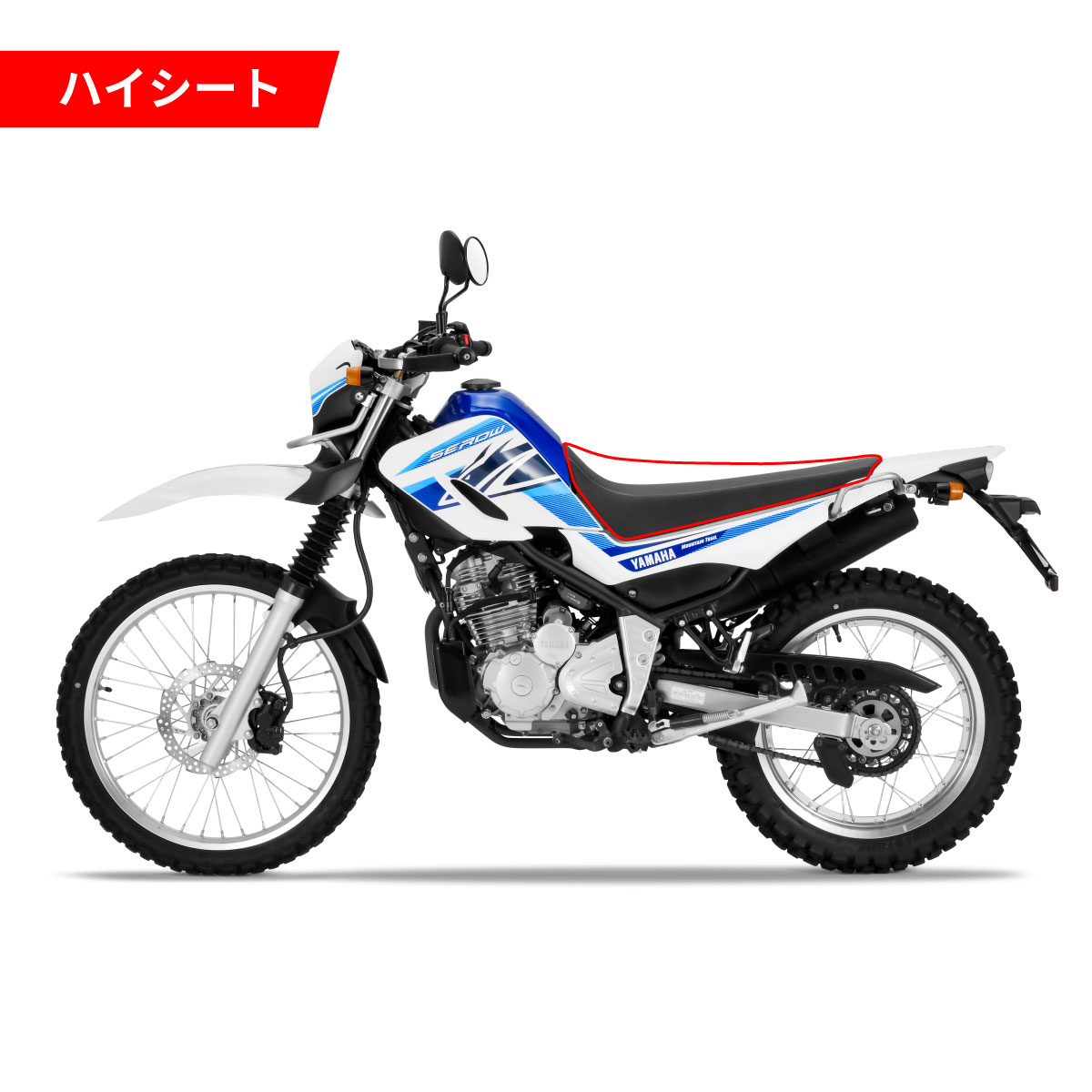

[High Seat] Model height: 178cm
This seat has further improved sports performance while ensuring comfort during touring. By increasing the thickness of the urethane by approximately 55mm, the knees do not become cramped and the burden on the body is reduced. In addition, the seat shape makes it easy to transition to standing foam and has a knee grip, making it excellent for off-road driving. The increased seat height makes your visibility wider and you can see better when cornering.
Urethane hardness (OEM comparison) → Hard

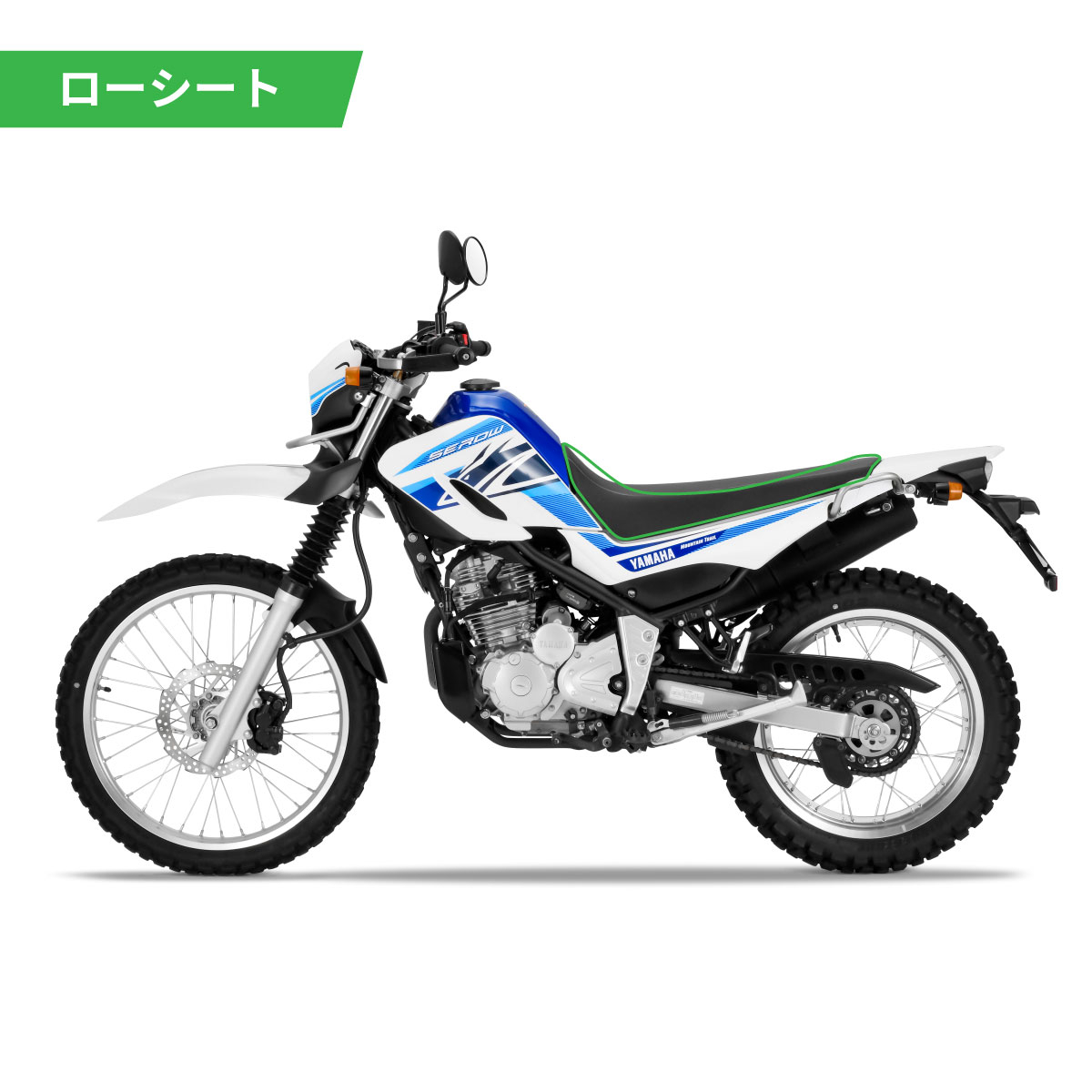

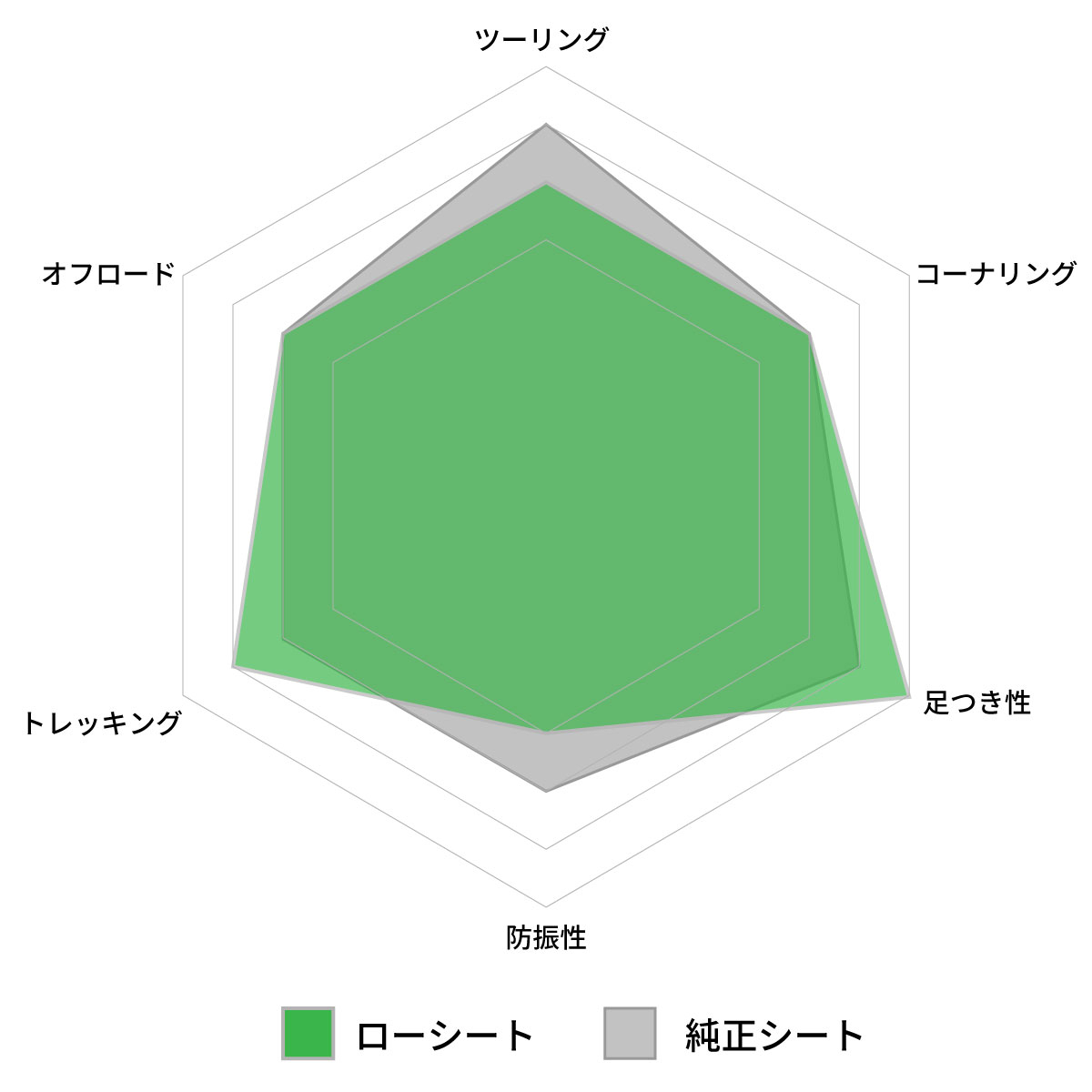

[Low seat] Model height: 157cm
A seat that pursues overwhelming footing and ease of body action. By reducing the thickness of the urethane by about 25mm, the range of movement of the riding position is expanded, not only with the foot. Ideal for driving in scenes with large body action, such as trekking. Because it uses firm urethane, it is thin, but it is difficult to bottom on the seat base, making it easy to use touring.
Urethane hardness (OEM comparison) → Slightly hard

No fitment list data.

Maker Car model Model year New Product Number {{ item.main_item_specification_1_content_en }} {{ item.main_item_specification_2_content_en }} {{ item.main_item_specification_3_content_en }} {{ header.has_en ? header.title_en : header.title }}
Loading data...
{{ row && row.maker_name ? row.maker_name : '' }} {{ row && row.maker_car_base_name ? row.maker_car_base_name : '' }} {{ row && row.maker_car_base_year ? row.maker_car_base_year : '' }} 【NEW】

{{ row && row.product_code ? row.product_code : '' }} ※{{ row.product_code_note }}

{{ row && row.item.specification_1_attribute_name_en ? row.item.specification_1_attribute_name_en : '' }} {{ row && row.item.specification_2_attribute_name_en ? row.item.specification_2_attribute_name_en : '' }} {{ row && row.item.specification_3_attribute_name_en ? row.item.specification_3_attribute_name_en : '' }} {{ custom.has_en ? custom.name_en : custom.name }}
No data available

Annotation

Image New number {{ item.specification_1_content_en }} {{ item.specification_2_content_en }} {{ item.specification_3_content_en }}
Loading data...
{{ series_item.specification_1_attribute_name_en }} {{ series_item.specification_2_attribute_name_en }} {{ series_item.specification_3_attribute_name_en }}
No data

Precautions

  • This product is sold only in pre-assembled assemblies. Seat bases, seat covers, and urethanes are not sold separately.
  • Attach the included sponge tape to the same position as the sponge attached to the back of the genuine sheet before use.
