Silencer Heat Guard

New part number
F3928
Old part number
ZE52-2909

For heat countermeasures from the muffler! Protect your touring bag and passengers.

Inquire about our products

F3928

Product Description

Prevents the touring bag from burning due to heat from the muffler and burns due to accidental contact.
Optional settings to extend the protection range.

  • Color: Silver

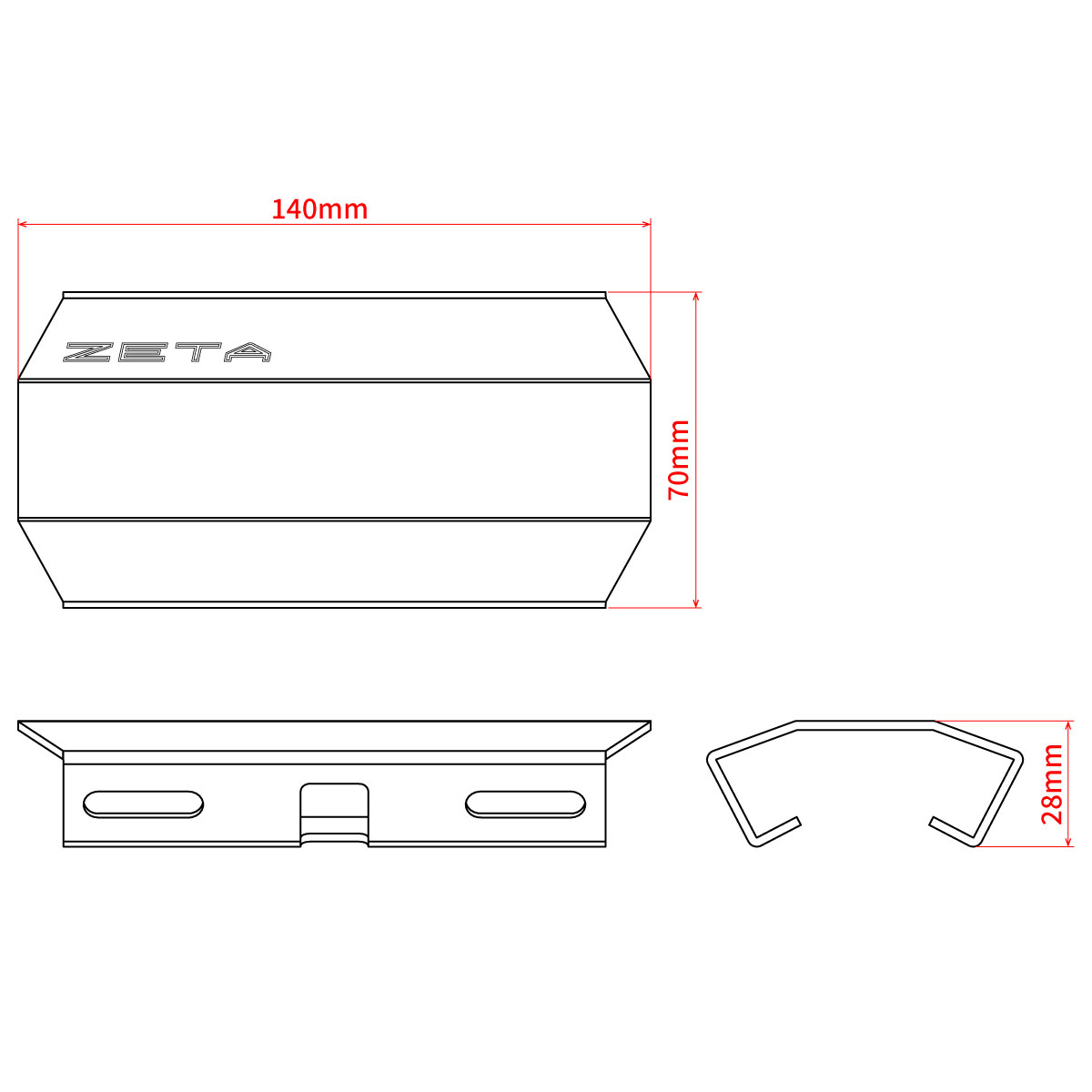

  • Body Size: Length 70mm ×Width 140mm×Height 28mm Weight
  • : 116g

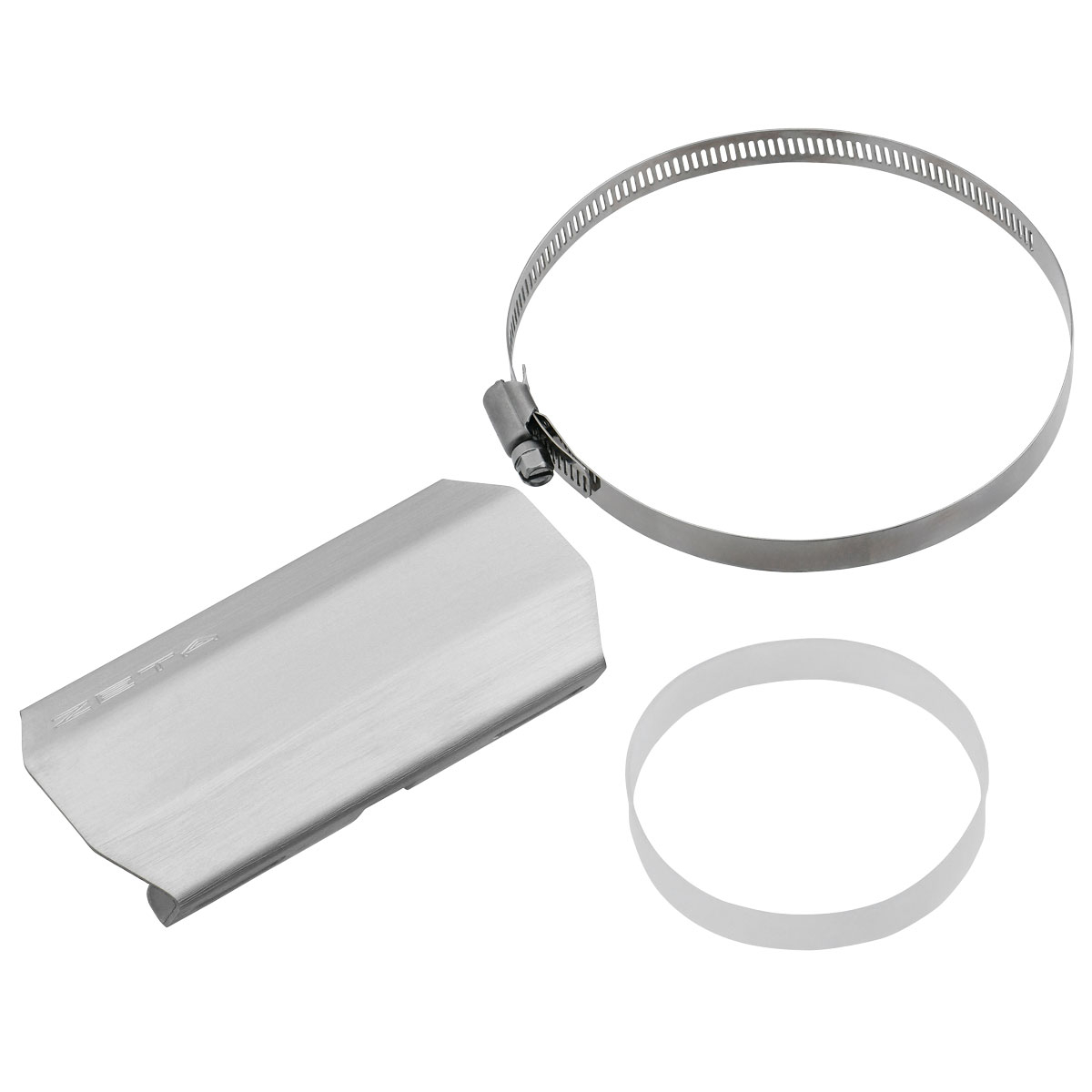

    • Contents
    • Heat Guard
    • Silicone Band
    • Hose Band Material
    • Heat Guard: Aluminum Alloy
    • Hose band: stainless steel

Product Image

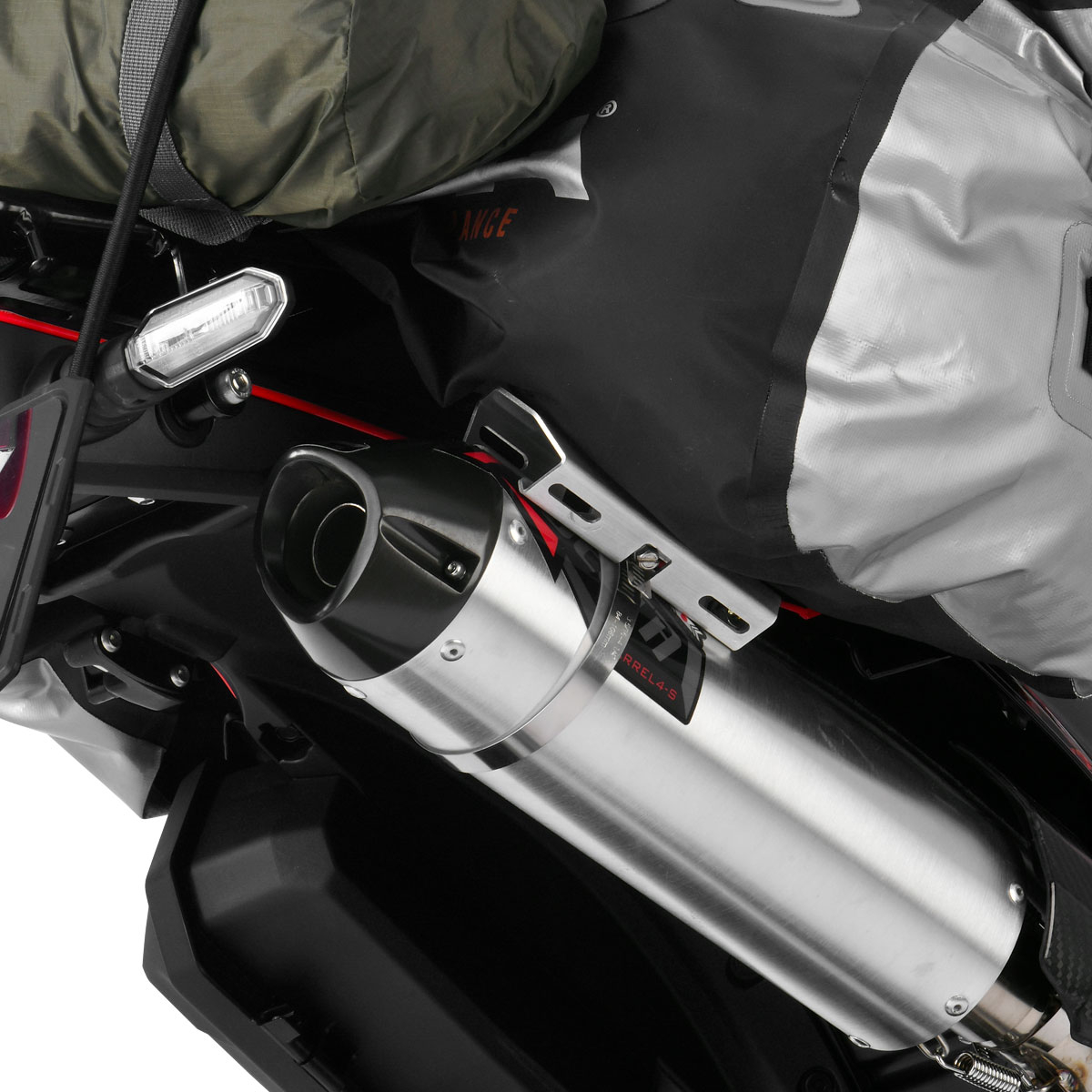

  • 20mm gap between the silencer and the heat silencer to prevent burns due to unintentional contact such as when the touring bag burns or when loading luggage.

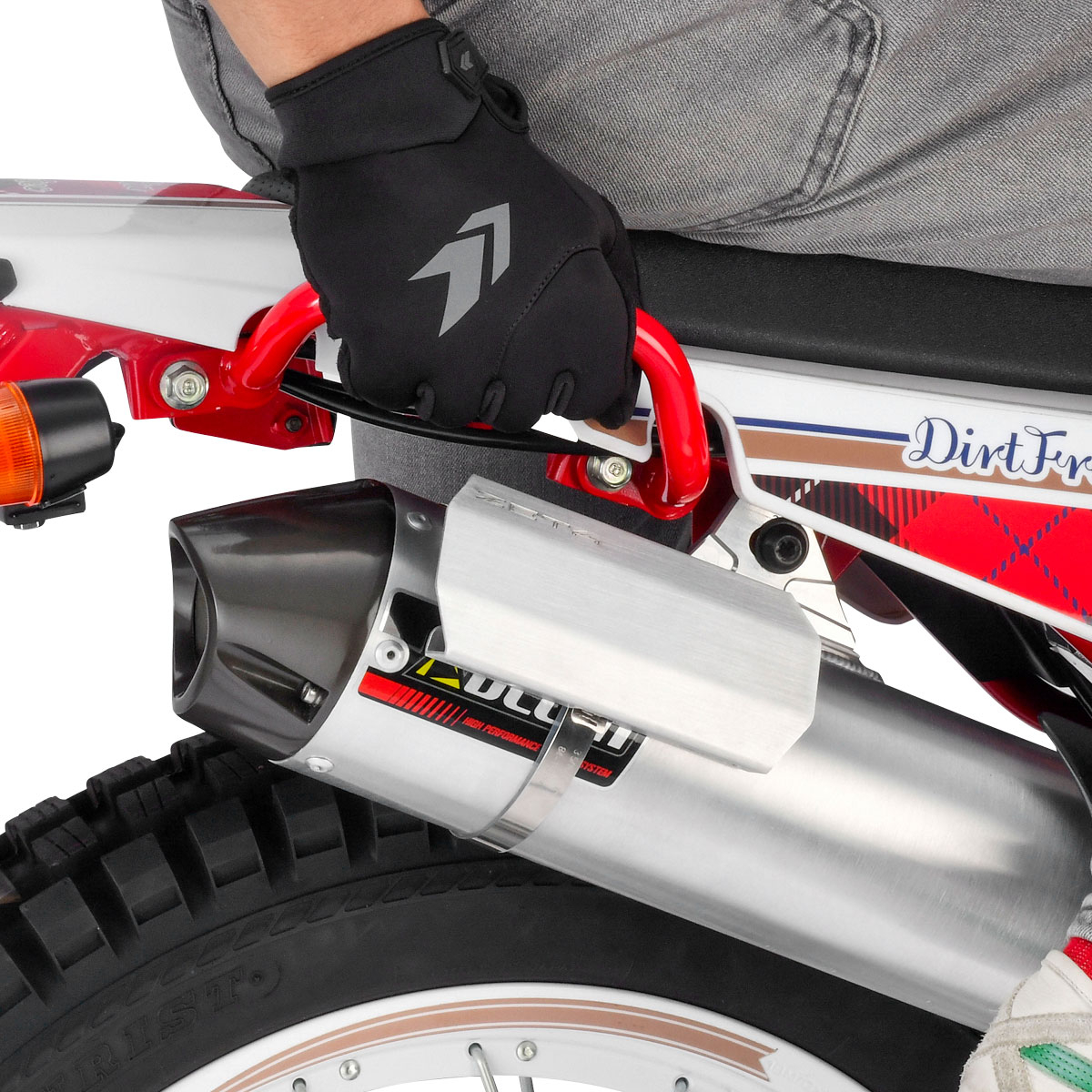

  • Prevent burns due to unintentional contact by attaching the device to places that are easily touched by passengers.

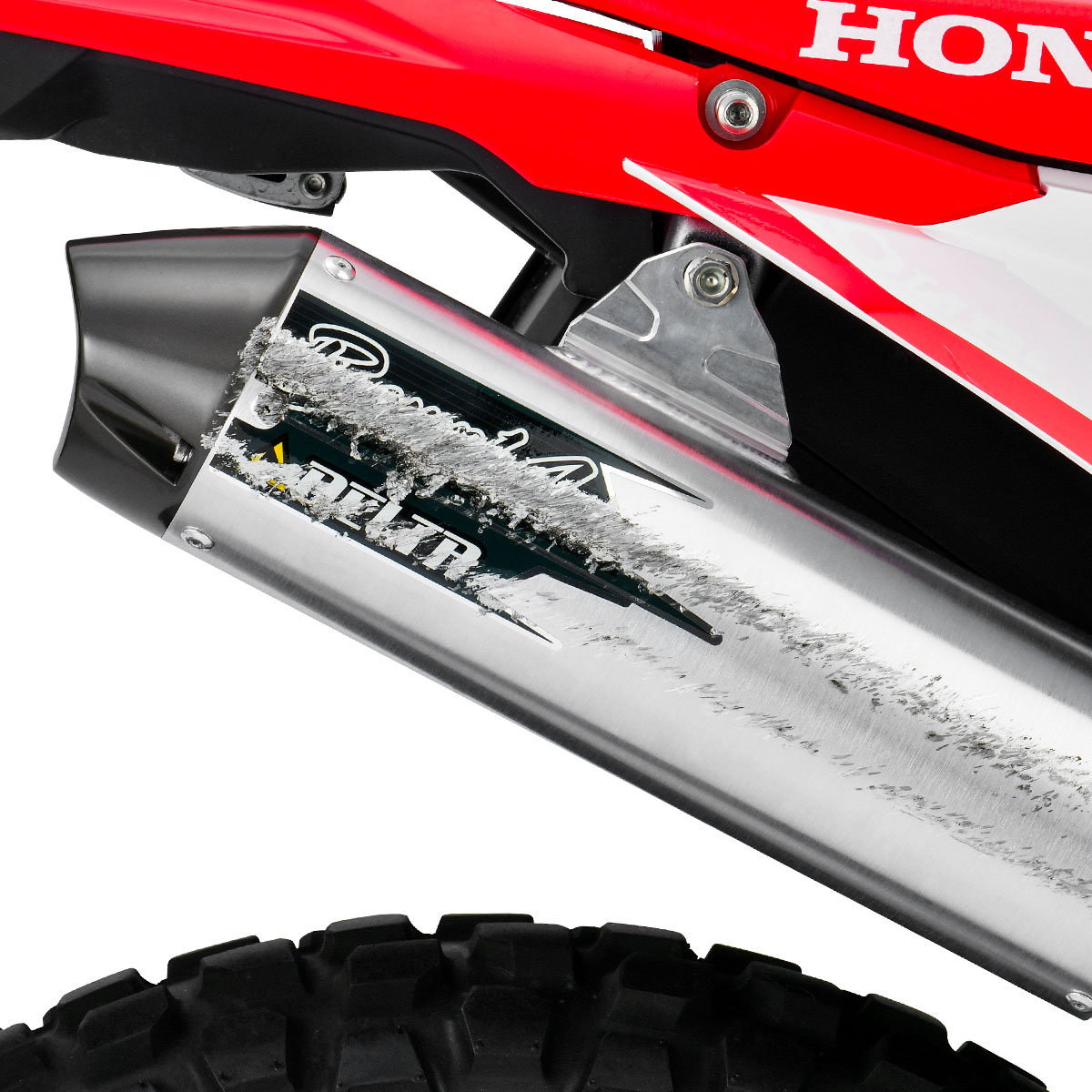

  • Protects the main body of the important silencer from scratches and impacts when it falls over.

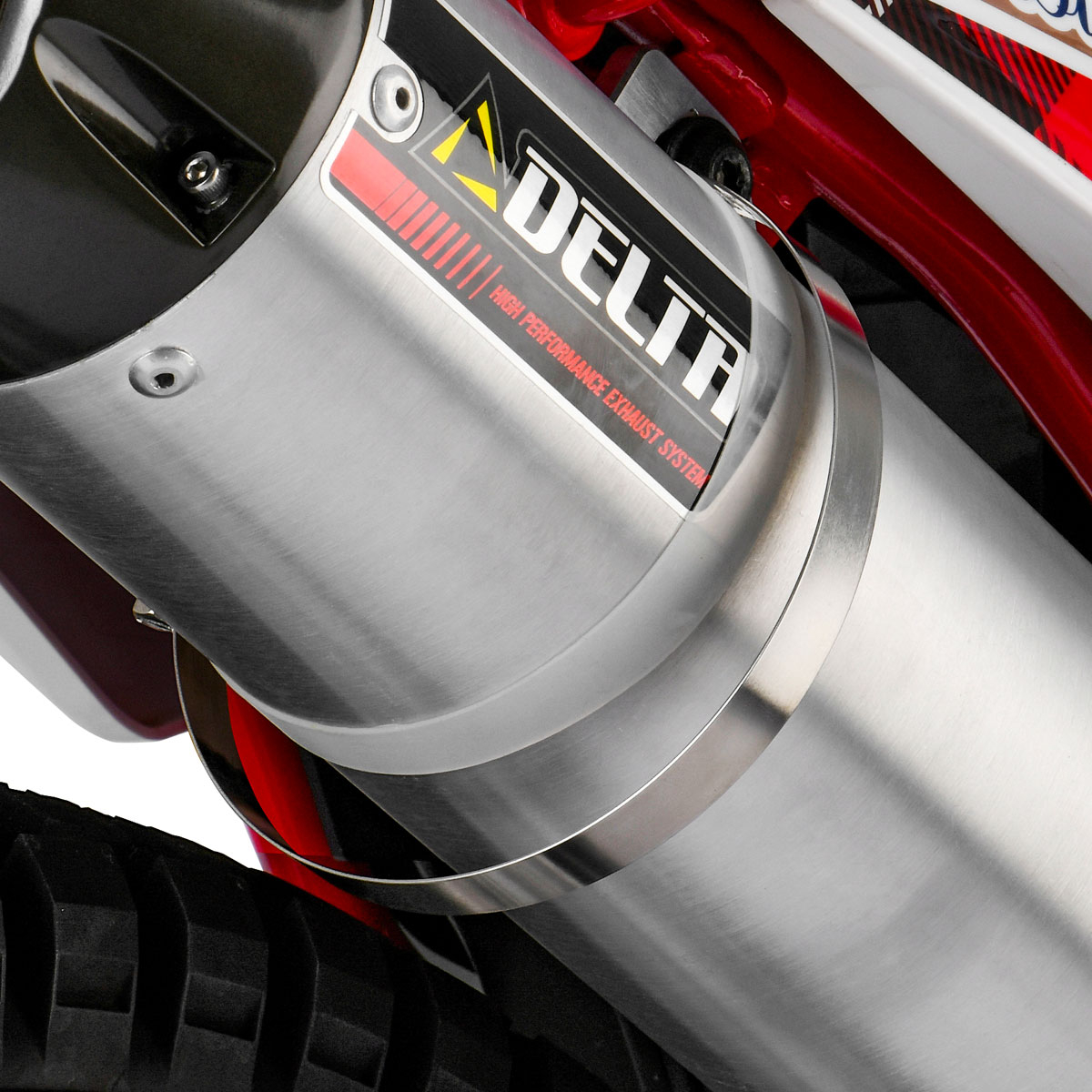

  • Compatible with round silencers of 80mm-140mm in diameter. Includes a rust-resistant stainless steel hose band and a silicone band to prevent scratches on the silencer body.

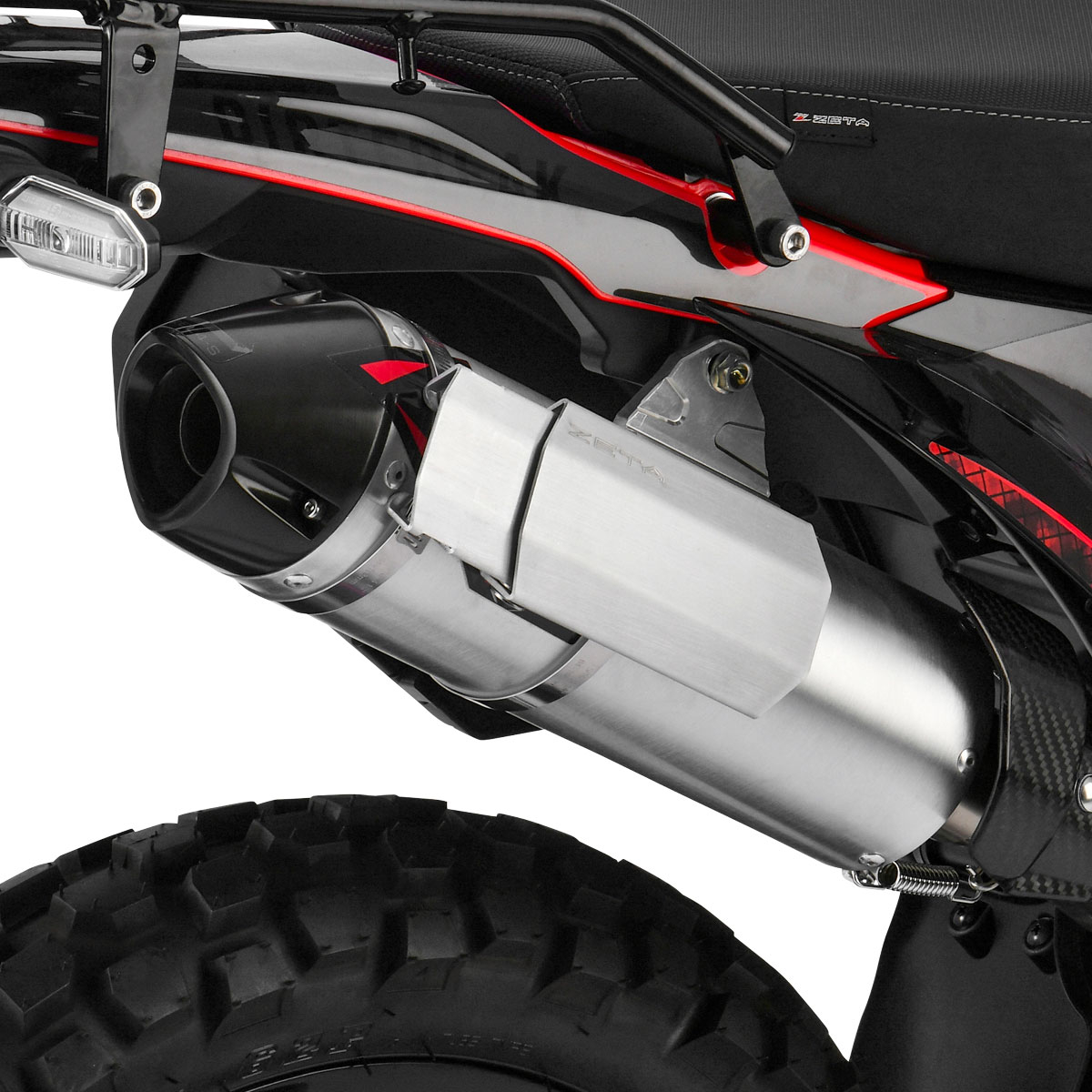

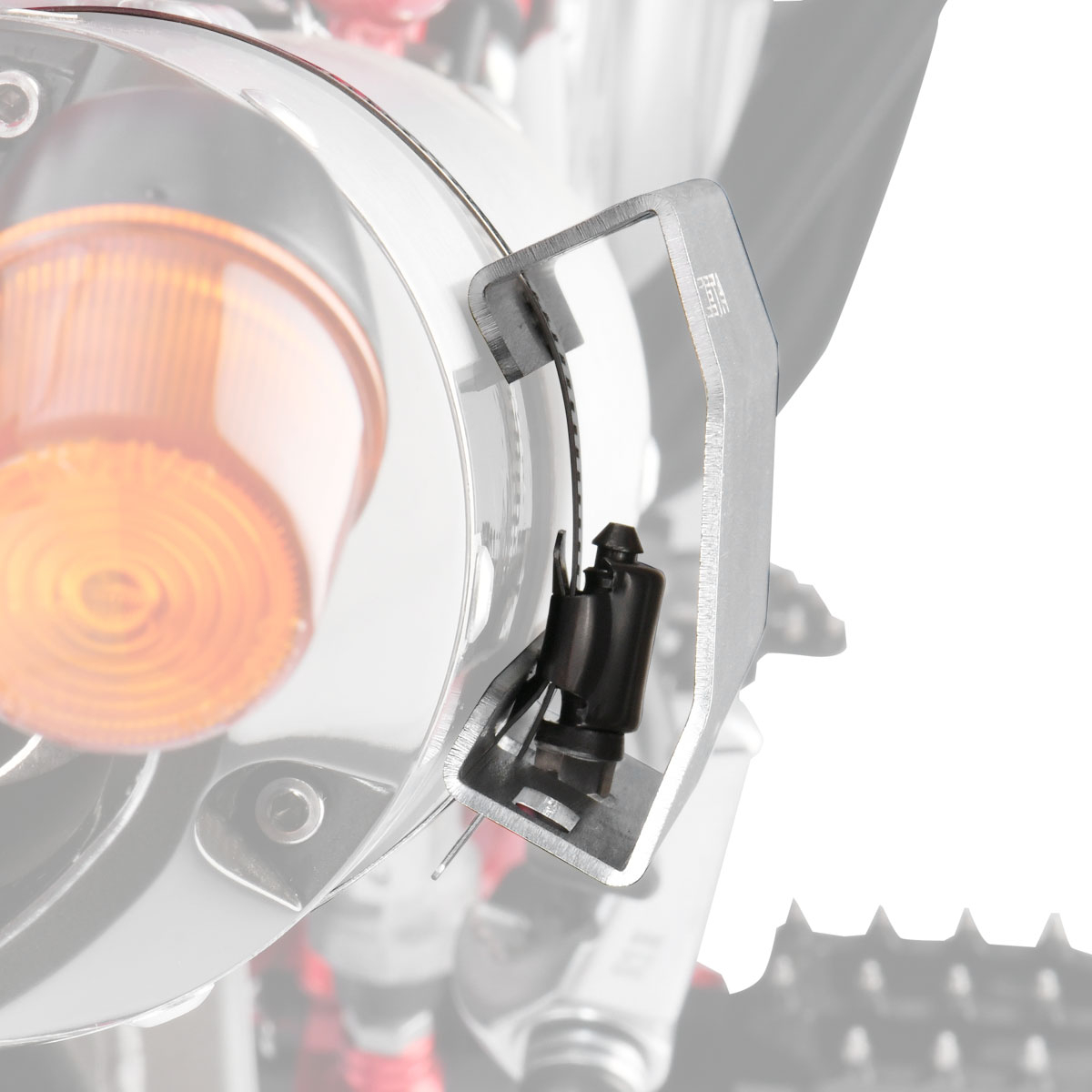

  • The tightening fittings of the stainless steel hose band are placed in the gap between the silencer and the touring bag to prevent interference with the touring bag. It also makes the entire silencer look neat and clean.

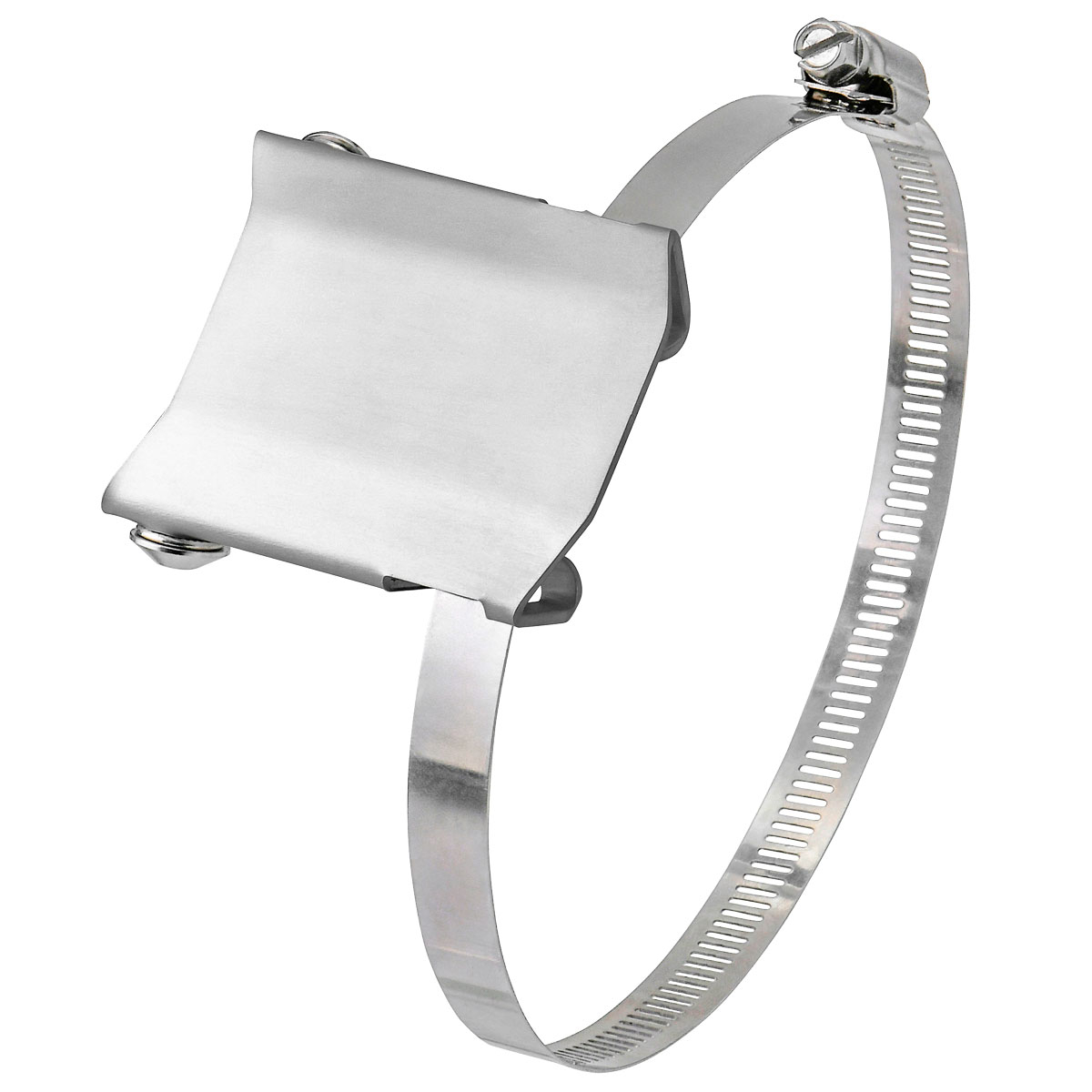

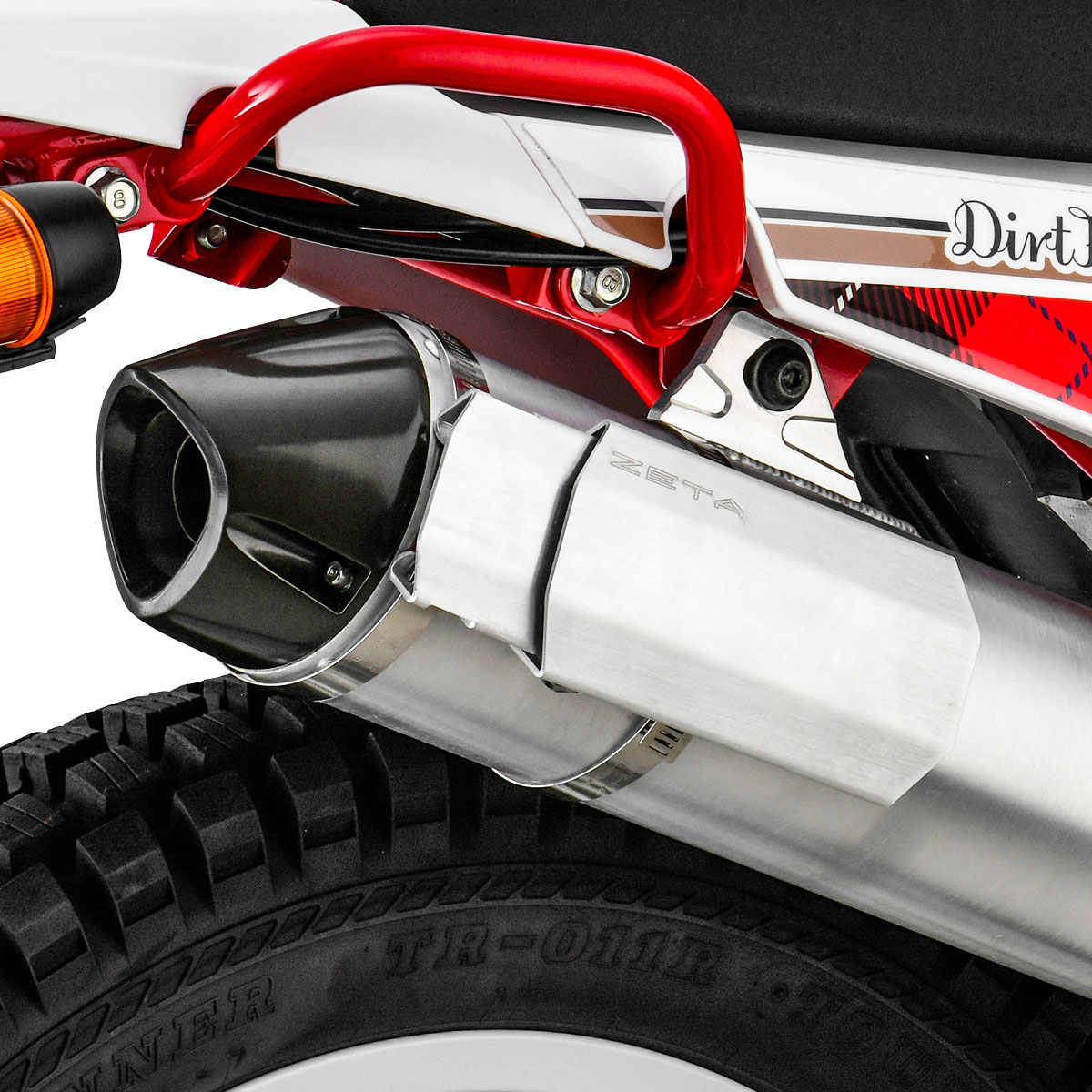

  • An option is available to extend the protective range by attaching to both ends of the guard body. Can be used on both the left and right side, allowing a high degree of freedom of installation.

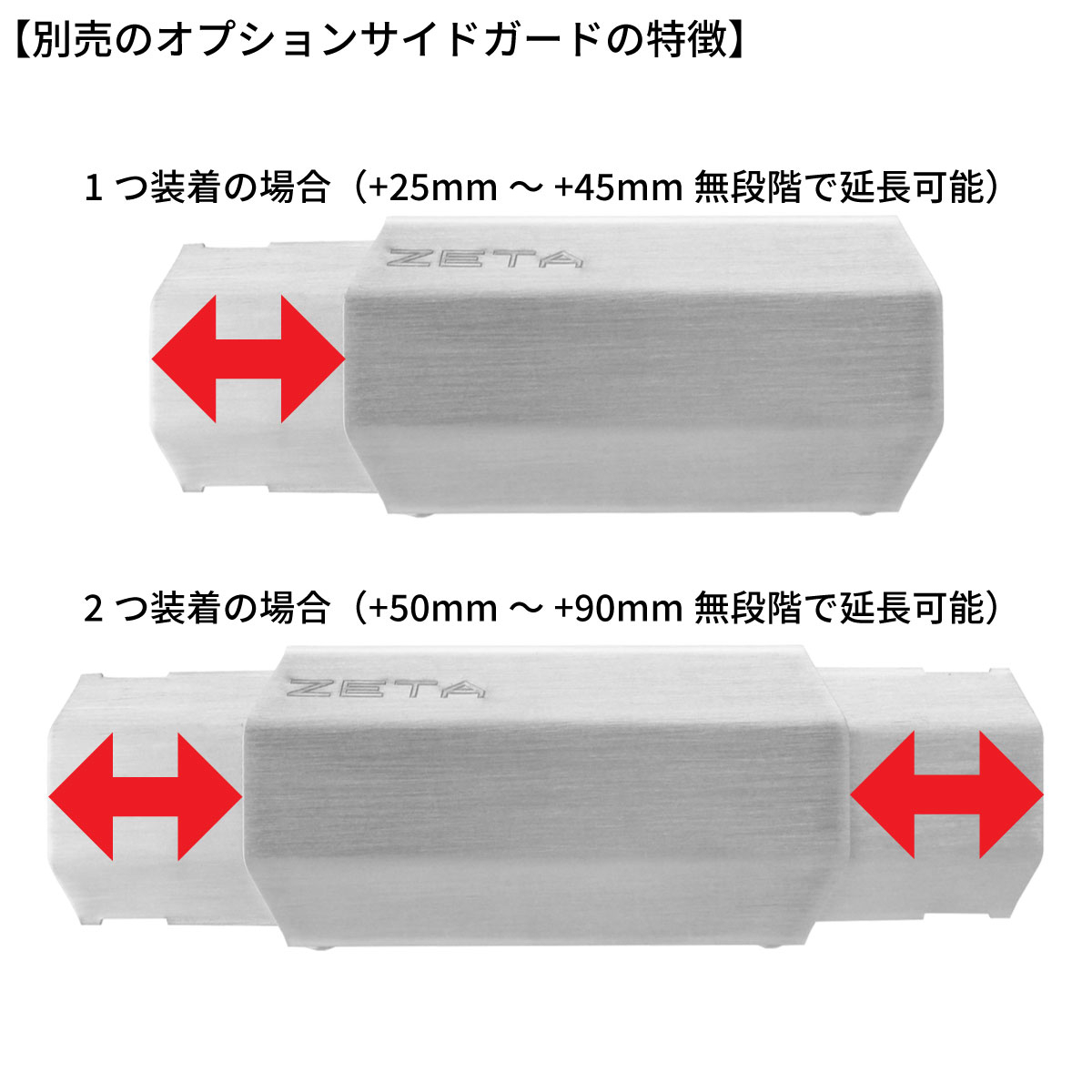

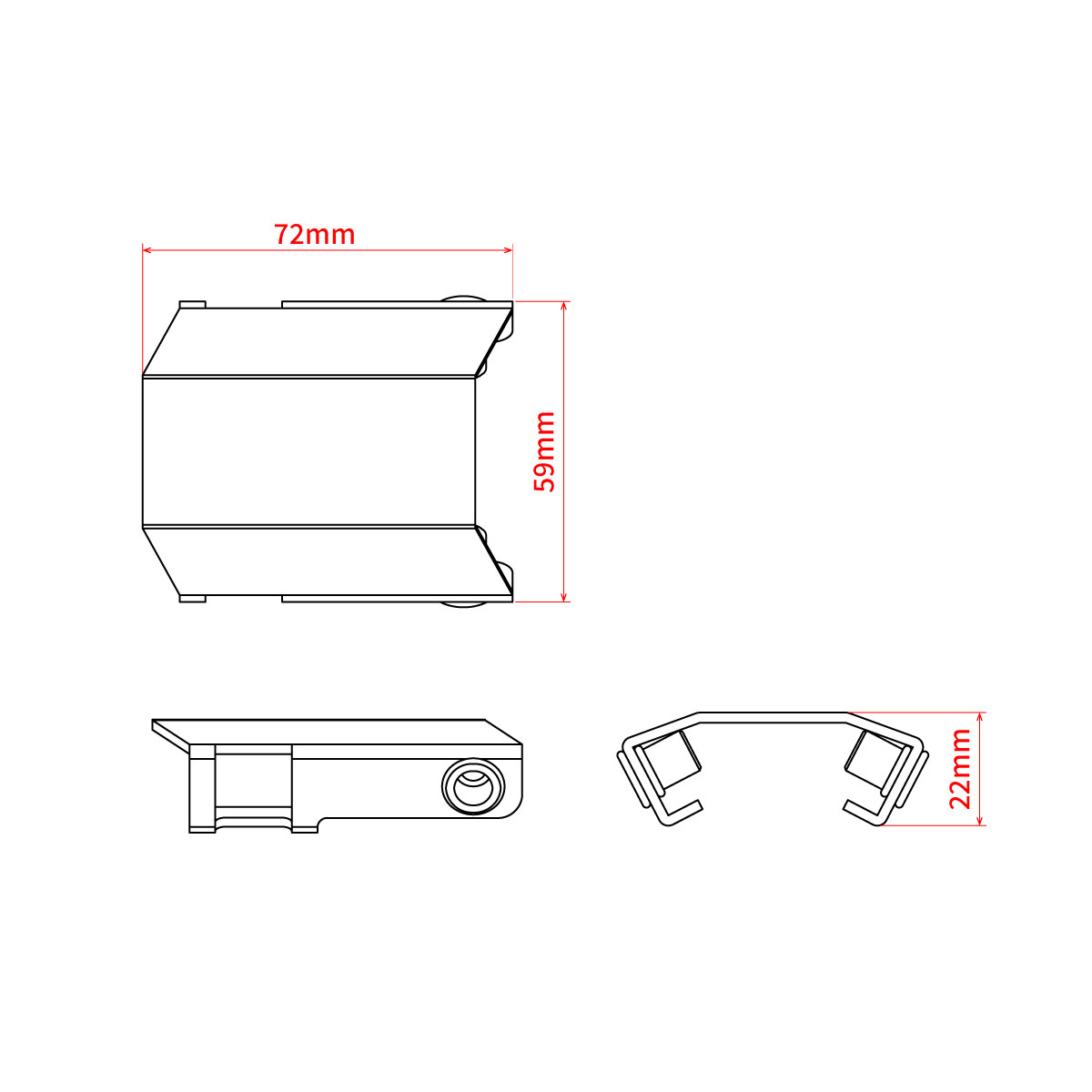

  • Features of the optional side guard]
    An extension of +25mm to +45mm is possible by attaching it to one side. When installed on both sides, it can be extended from +50mm to +90mm.

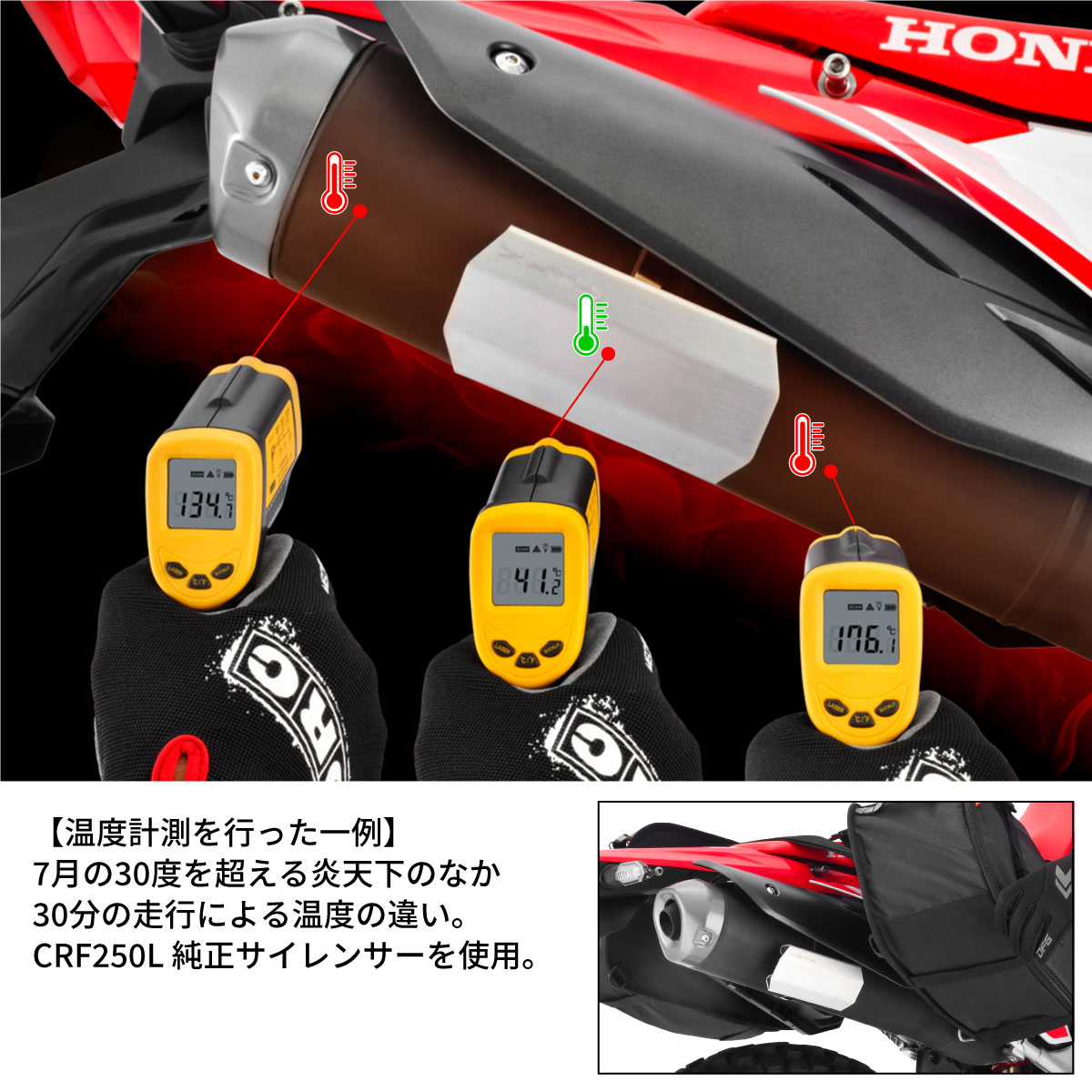

  • Example of temperature measurement]
    The difference in temperature after 30 minutes of driving under the blazing sun at over 30 degrees Celsius, using a stock CRF250L silencer.

No fitment list data.

Maker Car model Model year New Product Number {{ item.main_item_specification_1_content_en }} {{ item.main_item_specification_2_content_en }} {{ item.main_item_specification_3_content_en }} {{ header.has_en ? header.title_en : header.title }}
Loading data...
{{ row && row.maker_name ? row.maker_name : '' }} {{ row && row.maker_car_base_name ? row.maker_car_base_name : '' }} {{ row && row.maker_car_base_year ? row.maker_car_base_year : '' }} 【NEW】

{{ row && row.product_code ? row.product_code : '' }} ※{{ row.product_code_note }}

{{ row && row.item.specification_1_attribute_name_en ? row.item.specification_1_attribute_name_en : '' }} {{ row && row.item.specification_2_attribute_name_en ? row.item.specification_2_attribute_name_en : '' }} {{ row && row.item.specification_3_attribute_name_en ? row.item.specification_3_attribute_name_en : '' }} {{ custom.has_en ? custom.name_en : custom.name }}
No data available

Annotation

Precautions

cannot be attached to a tapered or irregular cross-sectional silencer.
