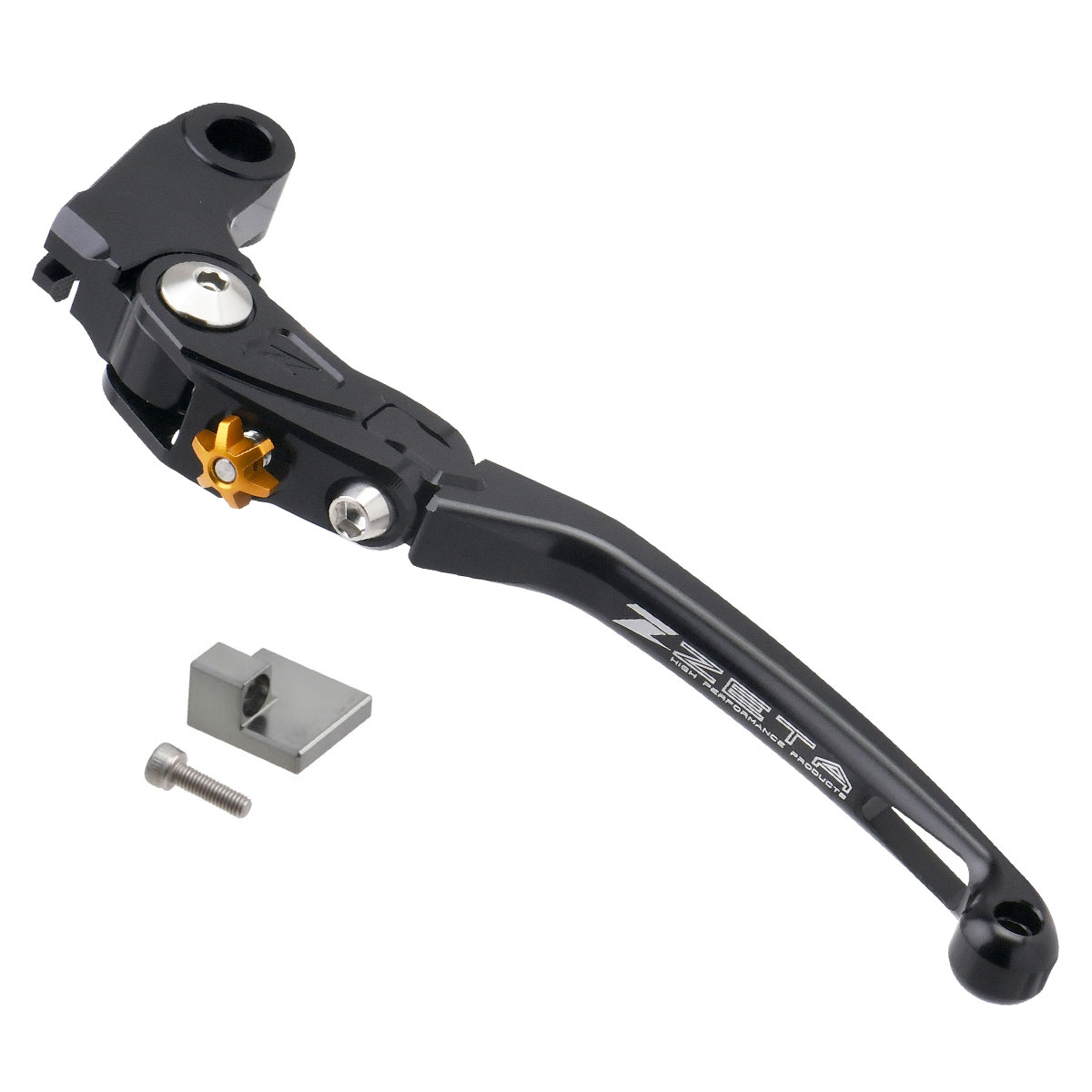

Brake lever Clutch levers

Pilot Lever Brake/Clutch

New part number
F5603
Old part number
ZS61-2415

Includes discontinued part numbers. Please check from the list of other part numbers.

Color

Black

Type

Clutch / L3Wa

View other product series

Inquire about our products

F5603

Product Description

The know-how of flight levers has been fed back to general-purpose vehicles that can be driven on public roads.

Can be moved upward, downward, and forward to greatly reduce damage due to falling.

Large vent hole at the tip releases wind pressure even at very high speeds.

Short lever is optimized for fine lever operation during sports driving.

Equipped with an adjusting system that allows fine lever position adjustment (approx. 20 levels).




High-strength aluminum alloy is used for the material and anodized surface treatment is applied.

Product Image

  • Upper/Downward Movable
    Absorbs upward and downward impact from a fall by moving upward and downward while crushing the crash point. This minimizes damage to the lever.

  • Forward movable
    Absorbs the impact of a fall by moving forward.
    Automatic lever return system with built-in spring is adopted.

  • CNC machining
    To achieve light weight and excellent operability, the entire 360° surface is machined by a high-precision CNC machine.

  • Adjusting knob
    Adjustable lever position can be adjusted more finely (approx. 20 steps) than the factory lever.

  • Please note
    The WA and WB types are not compatible due to their
    different lengths and curve shapes.

No fitment list data.

Maker Car model Model year New Product Number {{ item.main_item_specification_1_content_en }} {{ item.main_item_specification_2_content_en }} {{ item.main_item_specification_3_content_en }} {{ header.has_en ? header.title_en : header.title }}
Loading data...
{{ row && row.maker_name ? row.maker_name : '' }} {{ row && row.maker_car_base_name ? row.maker_car_base_name : '' }} {{ row && row.maker_car_base_year ? row.maker_car_base_year : '' }} 【NEW】

{{ row && row.product_code ? row.product_code : '' }} ※{{ row.product_code_note }}

{{ row && row.item.specification_1_attribute_name_en ? row.item.specification_1_attribute_name_en : '' }} {{ row && row.item.specification_2_attribute_name_en ? row.item.specification_2_attribute_name_en : '' }} {{ row && row.item.specification_3_attribute_name_en ? row.item.specification_3_attribute_name_en : '' }} {{ custom.has_en ? custom.name_en : custom.name }}
No data available

Annotation

Image New number {{ item.specification_1_content_en }} {{ item.specification_2_content_en }} {{ item.specification_3_content_en }}
Loading data...
{{ series_item.specification_1_attribute_name_en }} {{ series_item.specification_2_attribute_name_en }} {{ series_item.specification_3_attribute_name_en }}
No data

Precautions

  • When adjusting the lever position, please note that if you move the lever too close to the grip, the clutch switch may not respond.
  • On some car models, it is necessary to install using the original lever accessory parts.
