On-Road Handlebar

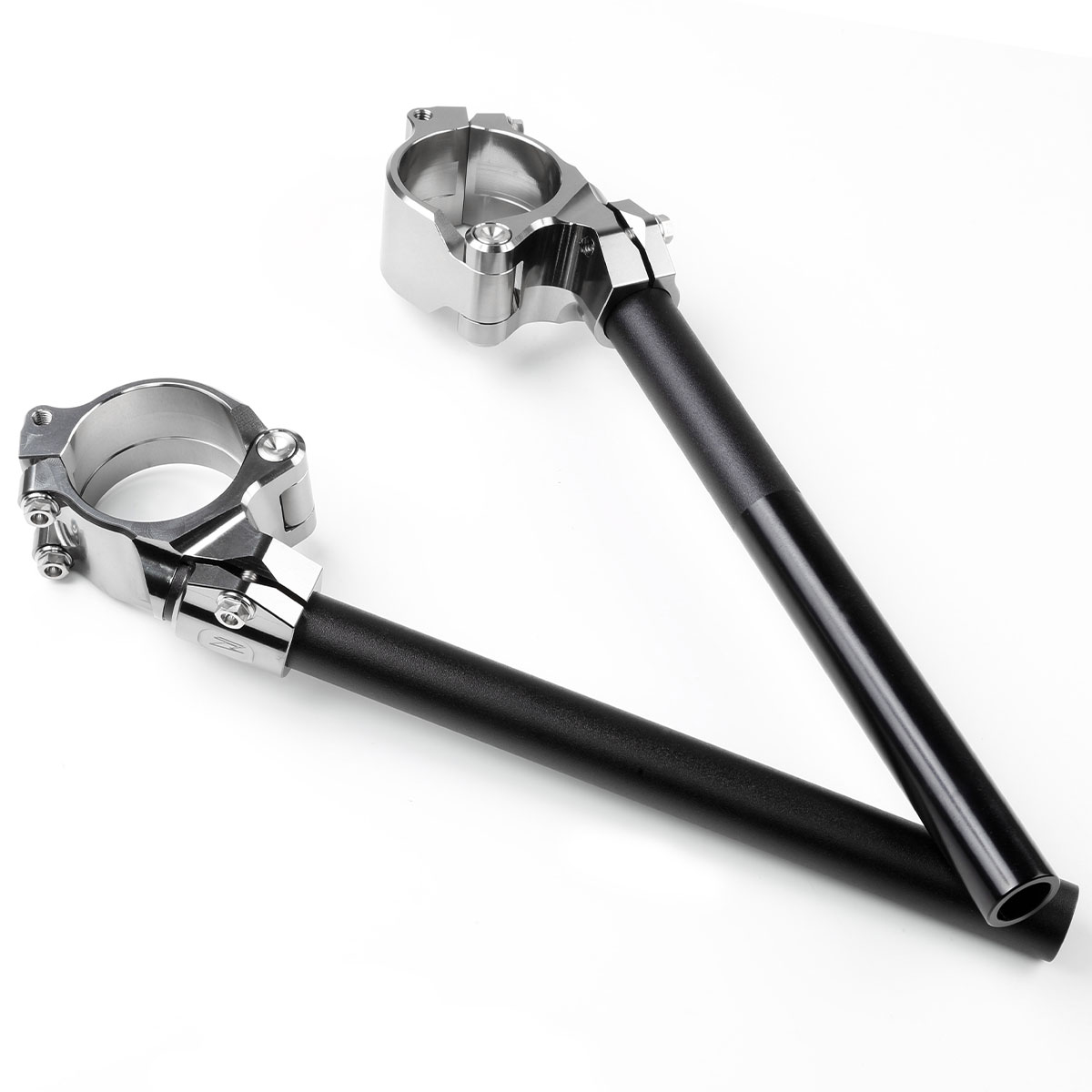

ZETA "Flight"ClipOn 50φ 12°Short OffSet 259mmBar

New part number
F4636
Old part number
ZS03-0337

A real racing handle created by feedback from the race!

Type

Short

Handlebar Size

222mm (effective length)

View other product series

Inquire about our products

F4636

F4629

F4629

F4629

Product Description

Designed specifically for sports driving, this racing handle has also been studied for workability and durability based on feedback from racing.
[Using Ti-6AI-4V]
The bolts and hinge pins are made of titanium alloy Ti-6AI-4V, which is lightweight, high-strength, and semi-permanently rust-free.
[T-slotted clamps]
Grooves are machined on the inside of the clamp to increase surface pressure and improve holding performance.
Stable tightening ]
The fork clamp is secured with two M6 bolts, which distributes the tightening torque and ensures stable tightening.
[3-D cutting]
In order to eliminate waste as much as possible, 360° cutting is performed on the entire surface.
The short offset type has a smaller offset, so the rider's body is more upright, which allows for greater freedom.

It also allows for more effective load transfer and posture change, resulting in a riding position that emphasizes turning.

The standard offset type has a general offset amount for clip-on handlebars.

Compared to the short type, the handlebar position is farther away and the rider is more forward leaning, resulting in a riding position that emphasizes stall rates and starting up.The above information is only a comparison of our two types of flight handles.
  • Clamp material : A7009-T6
  • Handlebar Material ： A6061-T6
  • Surface treatment: Color anodized aluminum
  • Handlebar outer diameter : φ22.2
  • Handlebar inner diameter : φ16
  • Clamp thickness : 36mm

Product Image
type Product number Clamp size Handlebar size
diameter offset angle full length
Standard F4629 50mm 39mm 6° 270mm
F4630 50mm 39mm 9° 270mm
short F4632 50mm 29mm 6° 205mm (effective length)
F4633 50mm 29mm 12° 205mm (effective length)
F4635 50mm 29mm 6° 222mm (effective length)
F4636 50mm 29mm 12° 222mm (effective length)
F4637 52mm 30mm 12° 222mm (effective length)
Maker Car model Model year New Product Number {{ item.main_item_specification_1_content_en }} {{ item.main_item_specification_2_content_en }} {{ item.main_item_specification_3_content_en }} {{ header.has_en ? header.title_en : header.title }}
Loading data...
{{ row && row.maker_name ? row.maker_name : '' }} {{ row && row.maker_car_base_name ? row.maker_car_base_name : '' }} {{ row && row.maker_car_base_year ? row.maker_car_base_year : '' }} 【NEW】 {{ row && row.product_code ? row.product_code : '' }} ※{{ row.product_code_note }} {{ row && row.specification_1 ? row.specification_1 : '' }} {{ row && row.specification_2 ? row.specification_2 : '' }} {{ row && row.specification_3 ? row.specification_3 : '' }} {{ custom.has_en ? custom.name_en : custom.name }}
No data available

Annotation

Image New number {{ item.specification_1_content_en }} {{ item.specification_2_content_en }} {{ item.specification_3_content_en }}
Loading data...
{{ series_item.master.product_code }} {{ series_item.specification_1_attribute_name_en }} {{ series_item.specification_2_attribute_name_en }} {{ series_item.specification_3_attribute_name_en }}
No data

Precautions

may not be possible to install due to machining or interference with parts.
